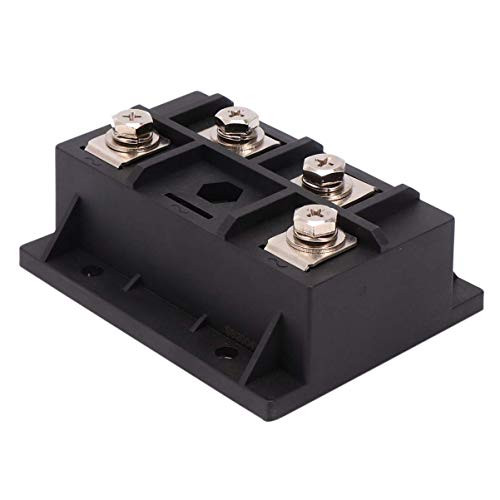

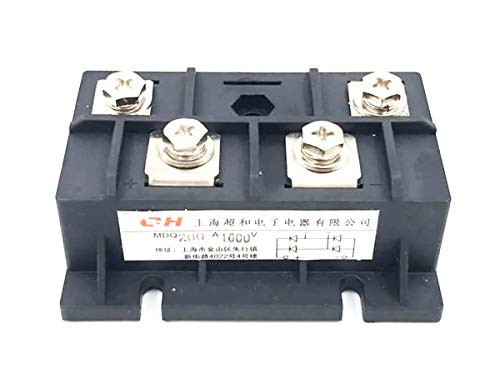

Bridge Rectifier 200A High Power Single Phase Diode Bridge Rectifier 4 Terminal Full Wave Diode Module 1600V Single Phase Bridge Rectifier

Hello, welcome! ?Product parameters: ? Brand: ZWYJ Voltage?1600V  Current?200A V?FO?? 0.8V Repetitive Peak Reverse Voltage V?RRM)? 1600V solation Voltage V?ISO??2500V Max. Junction Temperature: 150? Size: 80*40*27mm ?Features: ? 1. Electrical insulation between the chip and the substrate, AC voltage 2500V 2. International standard packaging; 3. Vacuum + hydrogen filling protection welding technology; 4. Welded structure, excellent temperature characteristics and power cycle capability; 5. Easy to install and easy to maintain. 6. Small size and light weight; 7. The working junction temperature reaches 150C. 8. Low forward pressure drop ?Product application: ? 1. DC current of equipment and equipment; 2. Input rectifier power supply of PWM converter; 3. DC motor excitation power supply; 4. Switching power supply input rectifier; 5. Soft start capacitor charging; 6. Electric drive and auxiliary current. 7. Inverter welding machine; 8. Charging DC power supply. ? Product packaging: ? 1×MDQ200-16
