?Description of power supply parameters?
Output voltage: 24V (DC Adjustable voltage range +5%/-10%)
Current range (electric current): 0 to 20A
Rated power: 480W
Input voltage: AC110V/220V (85-145V /185-265V)
Please switch the appropriate voltage before use
Opening difference: +/-1%.< br>
Efficiency: 80%.< br>
Frequency is: 50-60Hz
Temperature coefficient: ±0.03%/°C (0~50°C)
Operating temperature: -10~60?
Humidity during operation: 20-90%RH
Storage temperature: -20?~85?
Humidity during storage: 10%~ 95%RH
Size: 215*115*50mm (L*B*H)
Net weight: 0,8kg
Connection
L: AC input fire line.< br>
N: AC input null conductor
G: Grounding line
-V:Negative (DC output)
+V:Positive (DC output)
Caution
Note: The actual power is 80% of the rated power of the power supply (Example: If the power of your device is 800 watts, you need to buy a power supply with 1000 watts or more). When used indoors, the power supply is not waterproof. It is normal for the power supply to have a built-in fan and make a noise when it is working.

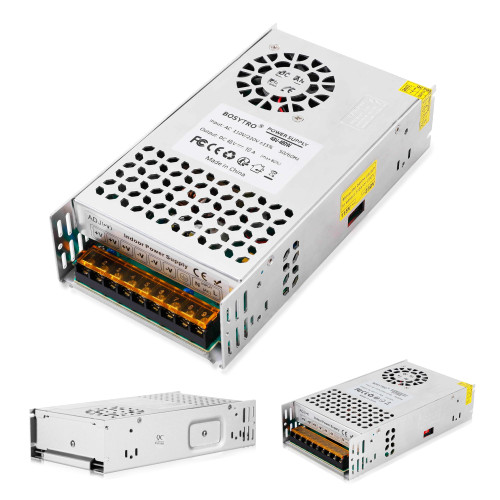

BOSYTRO 24V 20A 480W Adjustable DC Power Voltage Converter, Switching Power Supply AC 110V/220V (SMPS), 24 Volt Power Supply for 3D Printer, CCTV Camera Security System,Computer Project
Was:
$125.88
Now:
$62.94
- SKU:
- ZDV315251
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
