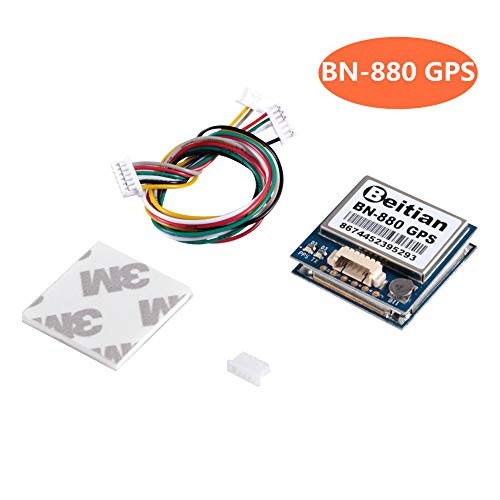

BN880 GPS Module Active Antenna NMEA0183 Flight Control with Flash Compass HMC5883L AMP26Pix4Pixhawk Support GPS Glonass Beidou Car Navigation

Features: Dimension: 28mm*28mm*10mm Weight: 11.8g Connector: 1.25mm 6pins connector Specification Chipset: M8030-KT Receiving Format: GPS, GLONASS, BEIDOU, GALILEO, SBAS, QZSS. Frequency: GPS L1, GLONASS L1, BEIDOU B1, GALILEO E1, SBAS L1, QZSS L1 Channels: 72 Searching Channel Sensitivity Tracking: -167dBm Reacquisition: -160dBm Cold start: -148dBm Hot start: -156dBm Accuracy Position Horizontal: 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky) Velocity: 0.1m/sec 95% (SA off) Timing: 1us synchronized to GPS time Acquisition Time Cold Start: 26s Warm start: 25s Hot start: 1s Data output Support Rate: 4800bps to 921600bps, Default 9600bps Data Level: TTL Level Data Protocol: NMEA-0183 or UBX, Default NMEA-0183 Update Rate: 1Hz-10Hz, Default 1Hz NMEA Message: RMC, VTG, GGA, GSA, GSV, GLL FLASH: 4M FLASH, Store the configuration permanently Operational Limits Altitude: 50,000m Max Velocity: 515m/s Max Acceleration: Less than 4g Power Consumption VCC: DC Voltage DC Voltage 3.0V-5.5V,Typical: 5.0V Current: Capture 50mA/5.0V Environment Operating temp:?-40 °C ~ +85°C Storage Temp: -40°C ~ +105°C Built-in LED: TX LED: blue. The data output, TX LED flashing PPS LED: red. PPS LED not bright when GPS not fixed, flashing when fixed Compass built-in compass with electronic compass IC HMC5883L Pin Description: 1: PIN SDA: Compass SDA 2: PIN GND: Ground 3: PIN TX: serial data output. 4: PIN RX: serial data input. 5: PIN VCC: 3.0 V-5.5V supply input, Typical: 5.0V 6: PIN SCL: Compass SCL Packaging List 1x BN-880 GPS Module 1x 15cm Cable
