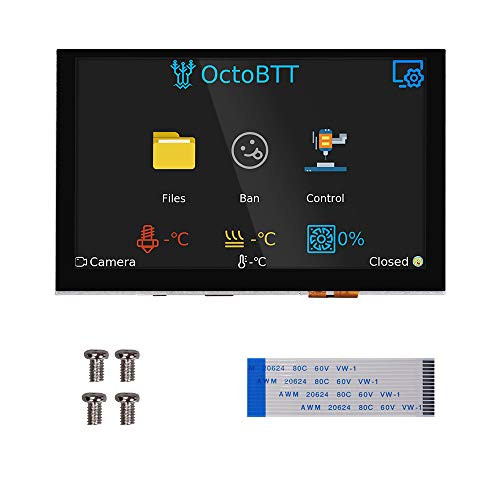

BIGTREETECH PITFT50 V1-0 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry Pi

PI TFT50 Technical Specifications: Working Voltage: 3.3V (provided by Raspberry Pi display interface) Maximum Working Current: 320mA Screen Current: 100mA Screen Resolution: 800*480 Video Interface: Raspberry Pi DSI Touch Points: 5 points Viewing Angle: 60°/70°/70°/70° RGB888-16 Trillion True Color Refresh Rate: 60Hz Luminous Rate: 280 cd/m2 Working Temperature: -20?-70? Dimensions: 121mm x 76mm Mounting Hole Size: M2.5 Outer Mounting Hole Position: 113mm x 68mm Inner Mounting Hole Position: 58mm x 49m Use Tutorial: The first step is to insert the SD card with the Raspberry-Pi system into the Raspberry-PI. Step 2: Connect the DISPLAY interface of the 5-inch touch screen to the DISPLAY interface on the Raspberry-Pi through the provided FPC cable. Step 3: After powering on the Raspberry-Pi, you can use the 5-inch touch screen.
