Spec:

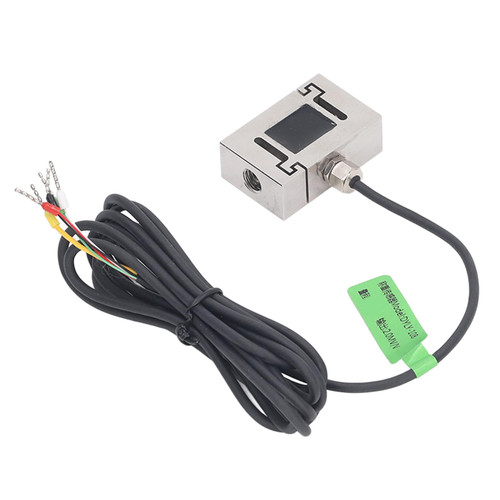

Item Type: S Load Cell
Material: Stainless Steel
Output Sensitivity: 2.0mV/V
Zero Output: ±2%F.S.
Non Linearity: 0.1%F.S.
Hysteresis: 0.05%F.S.
Repeatability: 0.05%F.S.
Creep(30 Minutes): 0.05%F.S.
Temperature Sensitivity Drift: 0.05%F.S./10°C
Zero Temperature Drift: 0.05%F.S./10?
Response Frequency: 10kHz
Impedance: 350?
Insulation Resistance: ?5000M?/100VDC
Use Voltage: 5-10V
Operating Temperature Range: -20-80°C
Safety Overload: 150%
Limit Overload: 200%
Cable Specifications: Less Than 100kg Diameter 2x1m, More Than 100kg Diameter 3x2m
Cable Limit Pull: 10kg
How to Use:
Install and use.
packing list:
1 x Sensor
