The Power Supply and The Load, You Can Supply to The Controller.
It Displayed As a Measured Temperature.
Press The "Set" Button, The Display Flashes The Temperature;
Press " + Or - " to set The Desired Temperature (Long Press " + Or - " to Quickly Increase Or Decrease);
After Setting Press set to Confirm Return;
The Controller Automatically Performs The Relay By Setting Off!
Lights, LED Status Descriptions:
Indicator: "Off" The Relay Is Switched Off, "Always" Indicate The Relay Is Closed.
Led: Shows "Ll" Is The Sensor Open, Showing "Hh" Is Out Of Range, The Thermostat Will Be Forced to Close The Relay, The Display, As High Temperature Protection.
Function Setting Table:
Long Press "Set" to Enter Into Setting
Code Number Code set Range Factory Setting P0 Cooling / Heating C/H C P1 Hysteresis Setting 0.1-15 2 P2 Highest Setting Limit 110 110 P3 Lowest Setting Limit -50 -50 P4 Temperature Correction -7-7? 0 P5 Delay Start Time 0-10 Minute 0 P6 Key Tone Switch 0-110 Off
When The Thermostat Is Power Off, Long Press "- Or +", You Can Restore The Factory Settings
Package List:

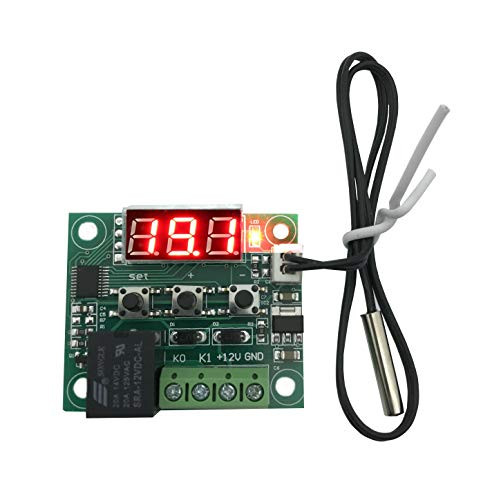

1 * W1209 Digital Temperature Controller Board
It Displayed As a Measured Temperature.
Press The "Set" Button, The Display Flashes The Temperature;
Press " + Or - " to set The Desired Temperature (Long Press " + Or - " to Quickly Increase Or Decrease);
After Setting Press set to Confirm Return;
The Controller Automatically Performs The Relay By Setting Off!
Lights, LED Status Descriptions:
Indicator: "Off" The Relay Is Switched Off, "Always" Indicate The Relay Is Closed.
Led: Shows "Ll" Is The Sensor Open, Showing "Hh" Is Out Of Range, The Thermostat Will Be Forced to Close The Relay, The Display, As High Temperature Protection.
Function Setting Table:
Long Press "Set" to Enter Into Setting
Code Number Code set Range Factory Setting P0 Cooling / Heating C/H C P1 Hysteresis Setting 0.1-15 2 P2 Highest Setting Limit 110 110 P3 Lowest Setting Limit -50 -50 P4 Temperature Correction -7-7? 0 P5 Delay Start Time 0-10 Minute 0 P6 Key Tone Switch 0-110 Off
When The Thermostat Is Power Off, Long Press "- Or +", You Can Restore The Factory Settings
Package List:
1 * W1209 Digital Temperature Controller Board
