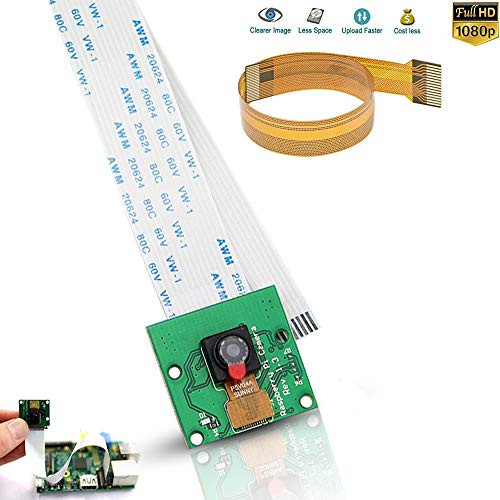

Aokin mini camera module for the Raspberry Pi series board, which is fully compatible with the official.
Specifications:
Module Weight: 3g
Max frame rate: 30fps
Focus Mode: fixed-focus
Working voltage: 1.7V~3.0V
Angle of View: 54 x 41 degrees
Field of View: 2.0 x 1.33m at 2 m
Module Size: 25mm ?24mm ?9mm
Working temperature: -20 C ~ 70 C
Sensor type: OmniVision OV5647 5MP
Maximum Photo Resolution: 2592 X 1944 pixel
Supported Video Resolution: 1080p@30fps, 720p@60fps, 480p@90fps
Interface: 15-pin MIPI camera serial interface - plugs directly into the Raspberry Pi board.
Package including:
1x 5MP Raspberry Pi Camera Module
1x 30cm golden ribbon flex cable for Raspberry Pi zero/zero w
1x 15cm white ribbon flex cable for Raspberry Pi Model A/B/B+, Pi 2 and Raspberry Pi 3, 3B+
1x 50cm white ribbon flex cable for Raspberry Pi Model A/B/B+, Pi 2 and Raspberry Pi 3, 3B+
Application:
Cellular phones, PDAs, Toys
Other battery-powered products
Can be used in all Raspberry Pi platforms
Reference:
You can find more detailed instructions for the Raspberry Pi camera:
raspberrypi.org/camera
raspberrypi.org/downloads
