Specifications:
IO port: 9
Power supply: 5V 2A
SPI Flash: default 32Mbit
Dimension: 27*40mm/1.06*1.57in
RAM: built-in 520KB SRAM+4MB PSRAM
Wi-Fi: 802.11b/g/n/e/i
Bluetooth: Bluetooth 4.2 BR/EDR and BLE standards
Spectrum Range: 2412~2484MHz
Support TF card: maximum support 4G
Support Interface: UART, SPI, I2C, PWM
Serial Port Baud-rate: Default 115200 bps
Antenna: onboard PCB antenna, gain 2dBi
Security: WPA/WPA2/WPA2-Enterprise/WPS
Image Output Format: JPEG( OV2640 support only ), BMP, GRAYSCALE
Features:
Supports WiFi Image Upload.
Support multiple sleep modes.
Embedded Lwip and FreeRTOS.
Support secondary development.
Support STA/AP/STA+AP working mode.
Support OV2640 and OV7670 cameras, built-in flash.
Support Smart Config/AirKiss one-click network configuration.
Clock speed up to 160 MHz, Computing power up to 600 DMIPS.
Support for serial port local and remote firmware upgrades (FOTA).
Package Included:

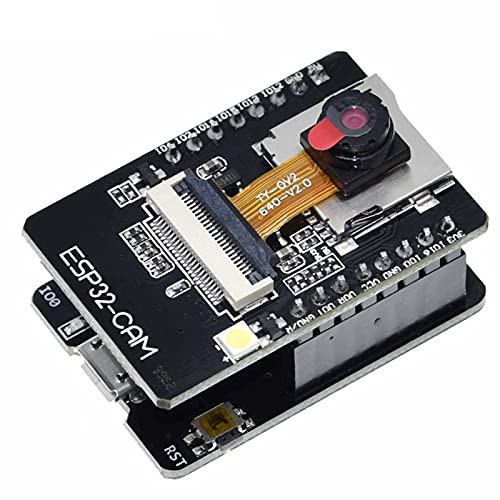

1 x ESP32-CAM Module
1 x Camera Module OV2640 2MP
1 x ESP32-CAM-MB Module - USB-TTL Serial Adapter Module
