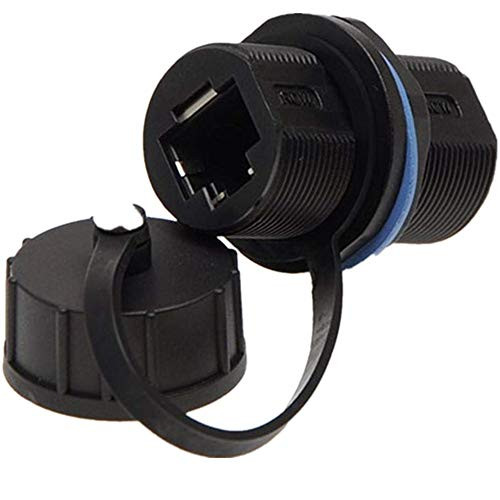

ANMBEST 10PCS Panel Mounting Shielded CAT6A RJ45 Waterproof Connector Cat5/5e/6/6E 8P8C Ethernet LAN Cable Coupler Double Head Adapter with Waterproof/Dust Cap

The Shielded Industrial Panel Mount is a Female/Female Couple. Using the standards based RJ45 connection system insures compatibility with existing hardware. The shielded coupler maintains the shield continuity offering protection from EMI/RFI interference. Specifications: INGRESS PROTECTION: IP68?With dust/waterproof cap? Thread: M23 Color: Black, Blue Number of cores: 8 PIN Connection type: RJ45 Flame retardant rating: UL94V-0 Connection method: plug type + thread pressure lock Mounting panel thickness:0.5~7mm(not included) Connector transmission classification: CAT5, CAT5E, CAT6, CAT6A Transmission speed range: Bandwidth: 500Mhz; Data rate: 10Gbps Electrical parameters: Rated current: 1.5A Rated voltage: 125VAC, 75VDC Insulation resistance: ?500M? Compressive strength: AC1000V 50HZ or 60HZ for 1 minute Contact resistance: ?10M? Material: Shell: PA66 nylon plus fiber (UL94V-0) Socket contact pin: 0.5mm diameter phosphor copper wire Contact pin gold plating thickness: 6u inch Waterproof rubber ring: silicone Environmental conditions: Working temperature: -40?120Celsius Storage temperature: -25?85Celsius Atmospheric pressure: 86?106kPa Relative humidity: ?90% RH Package Included: 10x M23 CAT6A Shielded Waterproof RJ45 Connector
