Wiring Method:
Black to ground.
Red to power.
Yellow to winch out and white to winch in.
Blue is the antenna cable you will need a winch solenoid to be able to hook up this.
Specifications:
Brand: AMOSKAMAR
Model: KLS-208/4C
Material: ABS
Battery Type: 1 * 6F22 9V 300mAh carbon-zinc battery(34g); 1 * 12V 27A 60mAh alkaline battery(7g)
Max. Remote Distance: 30m / 100ft
Delay Time of Remote Control: 0.2s
Item Weight: 227g / 8oz
Package Size: 13.6 * 10.7 * 5cm / 5.4 * 4.2 * 2inch
Package Weight: 270g / 9.5oz
Packing List:

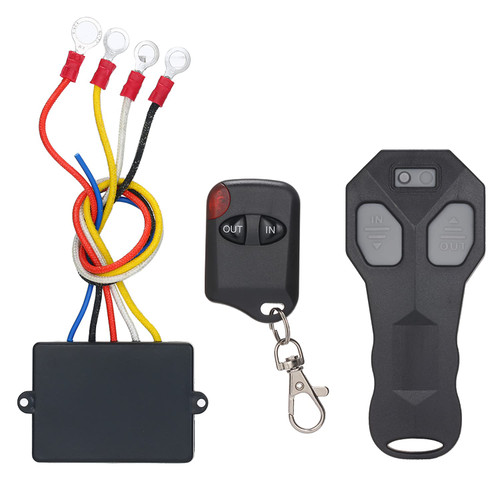

1 * Big radio remote control
1 * Remote control with keychain
1 * Remote control receiver
1 * Lanyard
1 * User manual (English)
Note:
This is a remote that works with a relay that reverses the voltage to the winch motor. If your winch has a built in relay, you would have to determine the correct solenoids to connect from the remote module. If your winch does not have a relay built in you would need to purchase a relay.
