FEATURES:
how to use:
1. Press the up button to display the starting temperature
Press and hold the UP button to display the flashing temperature. Press UP or the down button to set the starting temperature value.
2. Press the down button to display the stop temperature
Press and hold the down button to display the flashing temperature. Press the UP or Down button to set the stop temperature value.
Specifications:

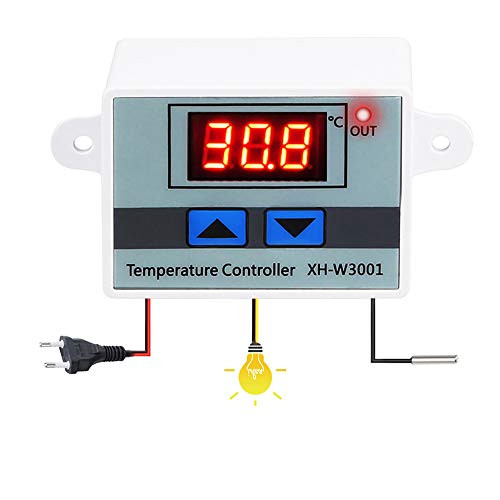

Type: Temperature Controller
Main Material: ABS
Housing Color: White
Mode: 110-220V/220V/24V/12V
Voltage: 12V
Output: 10A (Max)
Temperature Measurement Range: -50~110â"
Temperature Control Range: -50~110â"
Temperature Control Precision: 0.1â"
Load Power: 120W (12V)
Measuring Input: NTC10K 1m waterproof probe
Installation Hole Distance: 73mm/2.87in
Hole Diameter: 4mm/0.15in
Item Size: 6 * 4.5 * 3.1cm/2.36 * 1.77 * 1.22 in
Item Weight: 50g/1.6oz
Package:
1* Temperature Controller
