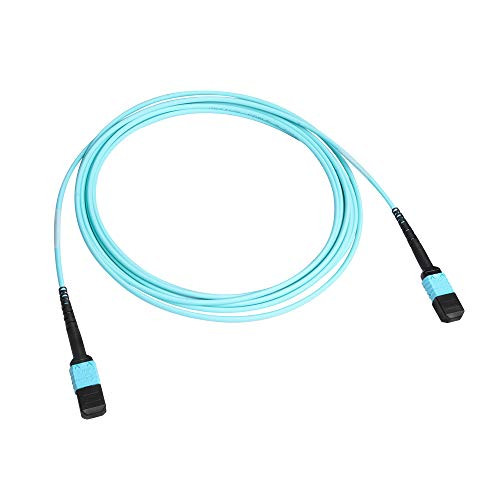

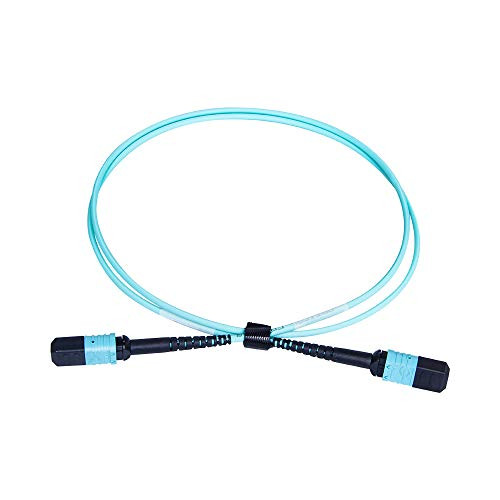

ADOP MPO-MPO Patch Cord, OM3 Multimode Fiber, 8-core Fiber for QSFP+Transceivers Application, 7-Meter(22.97ft)

MPO is Multiple-Fibre Push-On connector, defined by IEC-61754-7 and TIA-604-5-D. MTP connector, designed by US Conec Ltd. and fully compliant with the MPO standards, is an MPO connector with better optical and mechanical performance. The MT ferrule can float in the MTP to maintain physical contact on a mated pair if there is a strain on the cable. Generic MPO connectors do not offer this kid of feature. ADOP MPO connector can working with MTP connector, and have better cost. Description: multi-mode MPO products are multifiber connectors used in high-density backplane and Printed Circuit Board(PCB) applications in data and telecommunications system. The MPO stander is fully compatible with MTP stander, offers up to 12 times the density of standard connectors, such as LC/SC/FC etc. MPO/MTP patch cord providing sinificant space and cost savings. MPO patchcord utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MPO can be mass terminated in combination of 4, 8, 12 or 24 fiber ribbon cables. MPO Feature: High fiber density Small volume, easy management Can customize connection method as QSFP requirements Application Telecom system Cabling system High Density optical laser QSFP devices Specifications: MPO (female) to MPO (female) MMF(50/125um), OM3 Cable Length:1-50meter MPO Insertion loss : MPO ? 0.6 dB LC Insertion loss :?0.3dB LC Return loss : ?30dB Insert- pull test : 500times <0.5 dB Operation temperature : -40??+80?
