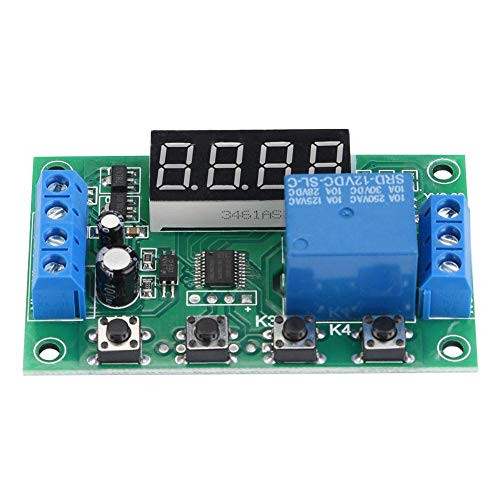

Adjustable Timer Relay LED Display Automation Control Switch Relay Module Industrial Electrical Accessories(5V)

Specification: Model: YYC-2S Material: Plastic Weight: 30g/1.1oz Voltage: 5V, 12V, 24V (Optional) Output power: DC or AC load within 5A can be controlled Time range: 0.01 seconds to 999 minutes can be adjusted at any time Description of wiring port: 1. DC+ : input the positive pole of DC power supply 2, DC- : input DC power supply cathode 3. IN+ : signal input is positive 4, IN- : signal input terminal negative 5. NO: the relay normally opens the interface, and the relay is suspended before absorption, and is connected with COM short after absorption 6. COM: relay public interface 7. NC: the relay normally closes the interface, and the relay is short connected with COM before absorbing and suspended after absorbing. Description of decimal point time unit: X.XX decimal point in the hundreds place, timing range: 0.01 seconds to 9.99 seconds XX.X decimal point in the tens place, timing range: 0.1 seconds to 99.9 seconds XXX has no decimal point, timing range: 1 second ~999 seconds XXX. Decimal point in the ones place, timing range: 1 minute to 999 minutes. Package List: 1 x Timer Relay
