AD8318 RF Logarithmic Detector RSSI Measurement Power Meter 1-8000MHz 70dB

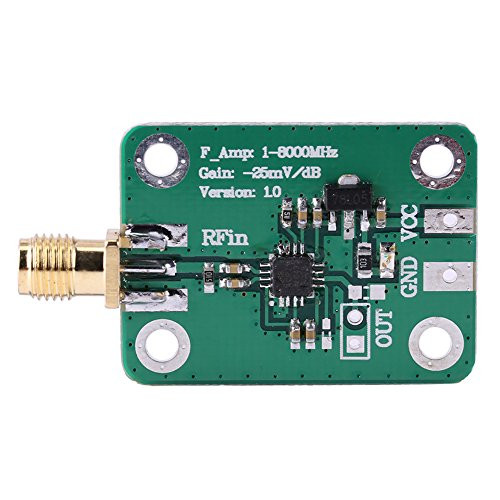

This is an AD8318 RF Logarithmic Detector with 1-8000MHz operating frequency. Its dynamic range is from -65dBm to +5dBm. The detector adopts AD8318 chip, so it has good sensitivity and high accuracy. Besides, it is equipped with power supply voltage regulator circuit and standard SMA female RF interface so that you can use it easily. And it can be used in signal strength indicator RSSI, spectrum analyzer and gain control. Specifications: The operating frequency: 1-8000MHz Dynamic Range: -65dBm to + 5dBm The detection slope: -25 mV / dB (Typical values) The detection output voltage range: 0.5--2.1V Power supply voltage: 7-15VDC (containing the power regulator circuit) The input impedance: 50 ohms RF interface: standard SMA female Size:5 x 3cm/1.97 x 1.18inch Package Includes: 1 x 1-8000MHz AD8318 RF Logarithmic Detector
