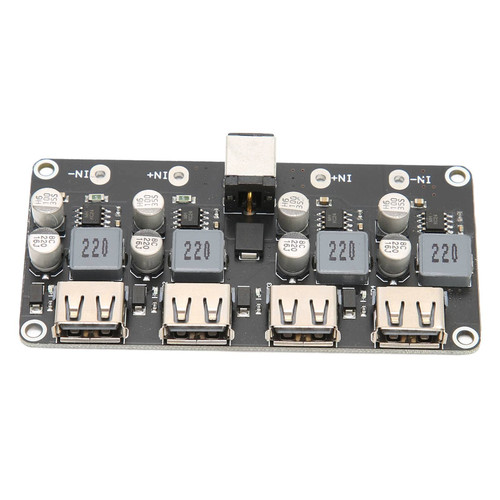

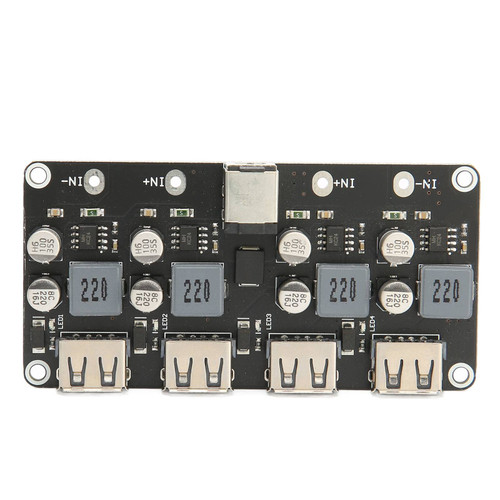

1. [4 WAY DESIGN] 4 way fast charging module, 12V24V to QC3.0, supports QC 3.0 fast charging protocol, and can be charged at the same time.
2. [EXCELLENT PCB] Adopt FR?4 1.6mm thick PCB design, with optimized layout, back heat dissipation, has low full load operating temperature.
3. [SAFE OPERATION] Standby current is 0.013A, the module has output voltage compensation function, with multiple protection and high reliability.
4. [WITH CHIP] Built in synchronous switching converter chip, with 220Khz switching frequency, voltage conversion efficiency up to 97%.
5. [USB CHARGING] USB interface design, can charge mobile phones, supports a variety of output fast charging protocols, with good compatibility.
Specification:
Item Type: Fast Charging Module
Built in synchronous switching converter chip
Input Voltage Range: 4.5V-32V ( module, the input voltage must be higher than the output voltage)
Output Voltage Range: 3V-12V, automatically adjusted according to the fast charging protocol
Output Power: 24W maximum (4V at 3.6A, 5V at 3.4A, 9V at 2.5A, 12V at 2A, etc.)
Output voltage wired compensation
Output has CV/CC characteristics (output current is less than the set value, output CV mode; output current is greater than the set value, output CC mode)
Conversion Efficiency: Up to 97%
Soft Start Function: Yes
Switching Frequency: 220Khz
Output Fast Charge:
1. Support for BC1.2, for iOS, for Samsung protocol
2. Support for Qualcomm QC2.0 QC3.0
3. Support for MTK PE1.1/PE2.0
4. Support for Huawei Fast charging Protocol FCP
5. Support for Samsung fast charging protocol AFC
6. Support for Spreadtrum Fast charging Protocol SFCP
Multiple Protection, High Reliability:
1. Output overcurrent, input overvoltage, input undervoltage, output short circuit protection
2. Over temperature protection of the whole machine
3. ESD 4KV, DC withstand voltage
2. [EXCELLENT PCB] Adopt FR?4 1.6mm thick PCB design, with optimized layout, back heat dissipation, has low full load operating temperature.
3. [SAFE OPERATION] Standby current is 0.013A, the module has output voltage compensation function, with multiple protection and high reliability.
4. [WITH CHIP] Built in synchronous switching converter chip, with 220Khz switching frequency, voltage conversion efficiency up to 97%.
5. [USB CHARGING] USB interface design, can charge mobile phones, supports a variety of output fast charging protocols, with good compatibility.
Specification:
Item Type: Fast Charging Module
Built in synchronous switching converter chip
Input Voltage Range: 4.5V-32V ( module, the input voltage must be higher than the output voltage)
Output Voltage Range: 3V-12V, automatically adjusted according to the fast charging protocol
Output Power: 24W maximum (4V at 3.6A, 5V at 3.4A, 9V at 2.5A, 12V at 2A, etc.)
Output voltage wired compensation
Output has CV/CC characteristics (output current is less than the set value, output CV mode; output current is greater than the set value, output CC mode)
Conversion Efficiency: Up to 97%
Soft Start Function: Yes
Switching Frequency: 220Khz
Output Fast Charge:
1. Support for BC1.2, for iOS, for Samsung protocol
2. Support for Qualcomm QC2.0 QC3.0
3. Support for MTK PE1.1/PE2.0
4. Support for Huawei Fast charging Protocol FCP
5. Support for Samsung fast charging protocol AFC
6. Support for Spreadtrum Fast charging Protocol SFCP
Multiple Protection, High Reliability:
1. Output overcurrent, input overvoltage, input undervoltage, output short circuit protection
2. Over temperature protection of the whole machine
3. ESD 4KV, DC withstand voltage
