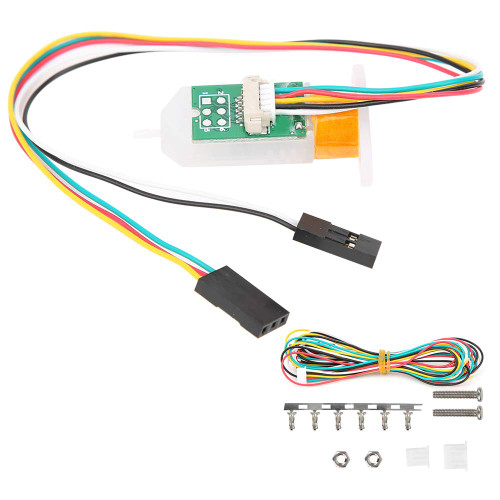

3D Touch Sensor Auto Bed Leveling Sensor for Creality Ender 3 Series and CR10 Series Geeetech Printers Anet A8 Anycubic I3 Mega etc_

User Manual: https://drive.google.com/file/d/1JED3PHeNBfPgLJkgGZwDBFA_xHBNZxLg/view Specifications: Voltage: 5V Current: 15mA Max. Current: 300mA Cable length: 150mm Net Weight: 10g Shipping weight: 35g Operate condition: 3DTouch can be operated in the following condition. One I/O for control (PWM or Software PWM) One I/O for Z min (Z Probe) GND and +5V power Wiring: 3-pin: Brown (-, GND), Red (+5V), Orange (control signal) 2-pin: Black (-, GND), White (Z min) Caution: Additional power supply will be needed in case your board does not supply enough amperage. Electronic devices can be damaged or even destroyed if connected to wrong polarity. [wrong terminal connect to 5V(+) and GND(-)] Pulling/pushing hard on the push-pin can damage 3DTouch and make it less accurate. Fix push-pin with locking paint after reassembling or adjusting core. Do not remove or deform elastic material attached on the push-pin. Package List: 1 X 3DTouch Auto leveling sensor 1 X 3Pin Straight Pin 1 X 2Pin Straight Pin 2 X Screw & Nut & Washer 2 X Dupont Housing Shell 3Pin 2 X Dupont Housing Shell 2Pin 3 X Dupont Housing Shell 1Pin 14 X Dupont Terminal 1 X 10K¦¸ 1/8W Resistor
