Specification:

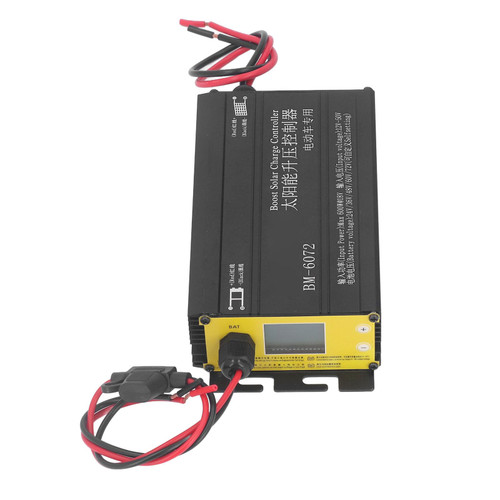

Item Type: Solar Boost Controller
Material: Aluminum alloy
Overvoltage: 28.8V(24V), 43.2V(36V), 57.6V(48V), 72.0V(60V), 86.4V(72V), can be set by yourself
Power: ?300W
Solar Input Voltage Range: 12~50V (voltage of solar panel should be lower than that of battery)
MPPT Voltage Range: 15~45V
Reverse Connection Protection: Reverse connection of battery will blow fuse
MPPT Efficiency: ?99%
Machine Efficiency: ?95%
Operating Temperature: -35?~65?
Insulation Resistance: AC1KV, 5min test/?20M?
Waterproof Class: IP54
How to Use:
ChildlockDescription:
1.OpenthefourscrewsONthesideofthecontrollerwiththedigitaldisplaytube.Youcanseeatwobitdipswitch,positionONisforthechildlocktoopen,position1and2isforthechildlocktocancel.Thefactorydefaultistocancelthechildlockstate,thatis,userscansetaccordingtotheirneeds.
2.Afterthecontrollerisinstalled,set,anddebug,switchtheDIPswitchtotheONposition,thatis,turnonthechildlocktopreventachargingerrorcausedbytouchingthebuttonbymistake.Ifyouneedtosetthefollowingtime,youcandialbackto1or2tocancelthechildlock.
Package List:
1 x Controller
1 x Fuse
1 x User Manual
Note:
This solar boost charging controller requires that the solar
