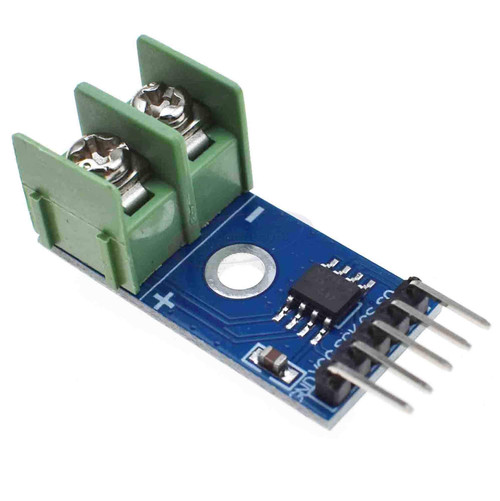

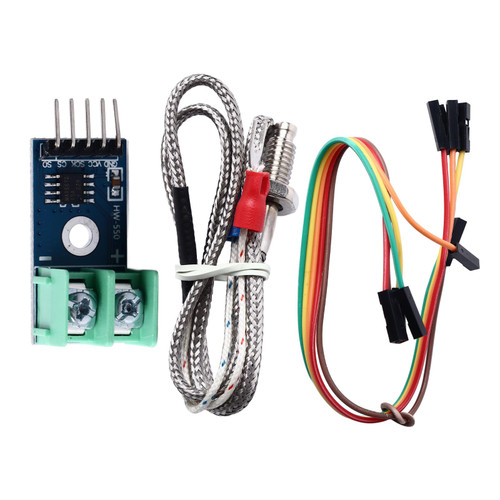

3-5VDC MAX6675 K Type Thermocouple Module Temperature Sensor Board Thermocouple Converter DIY Temperature Sensor Module -200°C~ plus 1350°C

Specification: Item Type: Thermocouple Module Material: PCB Application: Detect the temperature difference between the hot and cold ends Measuring Temperature Range: -200°C~+ 1350°C Interface Type: SPI interface, high-speed transmission Working Voltage: 3-5VDC Resolution: 14-bit resolution Accuracy: 0.25? Package List: 1 x Module 1 x Pin Header 1 x Terminal Feature: 1. The device can convert the ambient temperature into a temperature compensation voltage through the internal temperature detection diode. 2. Internally has a signal conditioning amplifier that converts the thermocouple signal into a voltage compatible with the ADC input channel. 3. The T and T?inputs are connected to the low?noise amplifier A1 to ensure the high accuracy of the detection input and at the same time isolate the thermocouple connecting wire from the interference source. 4. It has 12?bit analog/digital thermocouple converter, cold junction compensation sensing and correction, digital controller, 1 SPI compatible interface and 1 related logic control. 5. The measurement temperature range is -200°C~+1350°C, the resolution is 14-bit resolution, and the accuracy is 0.25°C.
