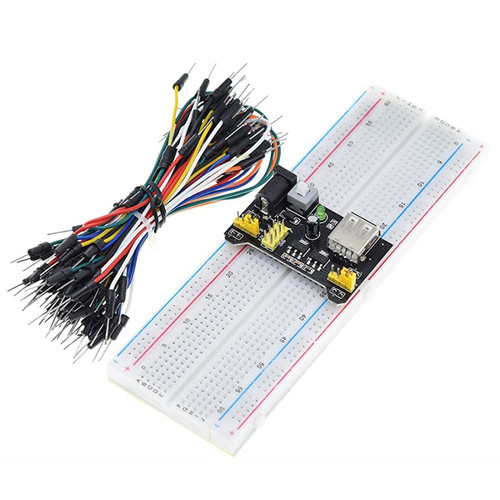

MB102:

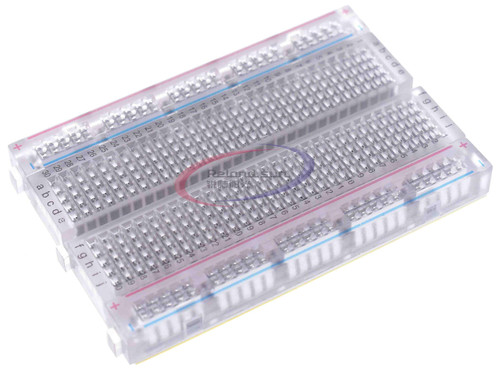

MB-102 quality bread board circuit board breadboard board universal board 165 × 55 × 10mm
One terminal strip: 630 jacks
Weight 89g / month
Two distribution strips: 200 jacks
Product dimensions: 5.6x16.5x0.85 (cm)
Phosphor bronze nickel-plated spring clip
Matching jumper, wire diameter 0.8mm
Plastic parts: ABS
Use: experiment, test
Features: recyclable, environmentally friendly recycling
The structure is clear and easy to use
Breadboard dedicated power supply module:
The breadboard can be assembled in fixed units
Breadboard dedicated power supply module, compatible with 5V, 3.3V
Applicable to MB102 breadboard
Input voltage: 6.5-12V (DC) or USB powered
Output voltage: 3.3V, 5V switchable
Maximum output current: <700ma
Up and down two independent control, can switch to 0V, 3.3V, 5V
Onboard two 3.3V, 5V DC output pins
65 Root Breadboard Cables:
Weight: about 35g
Bread line / breadboard line Bread board connection cable Bundle board line tie a tie 65 (there may be 1-2 of the error, please do not care about)
The total length of 65 test lines are:
24CM (with needle part) 4 root
20CM (with needle part) 4 root
16CM (with needle part) 8 root
12CM (with needle part) 49 root
