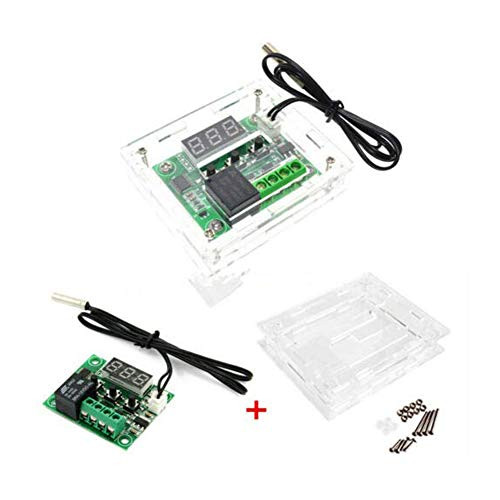

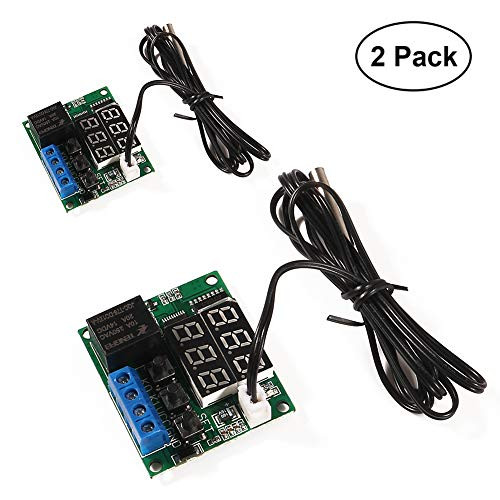

2PCS XH-W1219 Temperature Controller Module Double Display Digital Thermostat Module with Waterproof NTC Probe -50~110? Electronic Temperature Temp Control Module Switch

The W1219 is an incredibly low cost yet highly functional thermostat controller. With this module, you can intelligently control power to most types of electrical device based on the temperature sensed by the included high accuracy NTC temperature sensor. Although this module has an embedded microcontroller no programming knowledge is required. 3 tactile switches allow for configuring various parameters including on & off trigger temperatures. The current temperature is displayed in degrees Centigrade via its 3 digit seven segment display and the current relay state by an on board LED.   P0 :Cooling / Heating; Range: C/H; Default: C P1 :Hysteresis Setting; Range:0.1-15; Default: 2 P2 :Highest Setting Limit; Range:110; Default: 110 P3: Lowest setting Limit; Range:-50; Default: -50 P4 :Temperature Correction; Range:-7~7?; Default: 0? P5: Delay Start Time; Range:0-10 Minute; Default: 0 P6: High Temperature Alarm; Range:0-110; Default: Off When the Thermostat is power off, long press "- or +", you can restore the factory settings   Specification: Temperature Control Range: -50 ~ 110? Resolution at -9.9 to 99.9: 0.1? Resolution at all other temperatures: 1? Measurement Accuracy: 0.1? Control Accuracy: 0.1? Refresh Rate: 0.5 Seconds Input Power (DC): 12V Measuring Inputs: NTC (10K 0.5%) Waterproof Sensor: 0.5M Output: 1 Channel Relay Output, Capacity: 10A   Power Consumption: Static Current: <=35mA Current: <=65mA   Environmental Requirements: Temperature: -10 ~ 60? Humidity: 20-85%   Dimensions: 48mm x 40mm x 14mm Package Included: 2 * W1219 Temperature Controller Module
