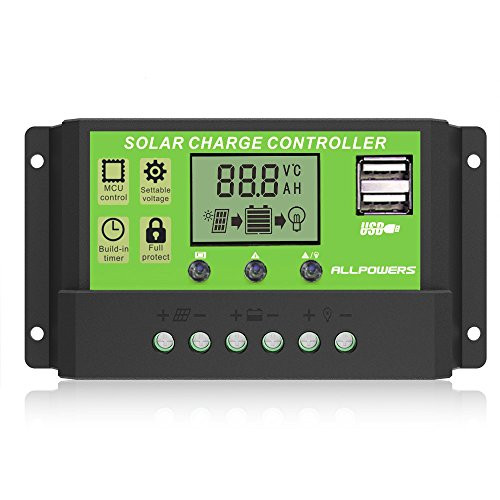

12V/24V auto work LCD screen display One USB output Easy operation interface PWM charging mode short-circuit protection Battery reverse discharge protection Battery reverse polarity protection open-circuit protection Overload protection
Parameters:
1. Floating charge Voltage(HVD 13.3V-15V) 2. Recovery after under Voltage(LVD 11V-13.5V) 3.Under Voltage protection (RVD 9V-12.3V) 4.Load Mode(24hours,1-23hours,0hour) 5.Battery Option (GEL,LEAD-ACID,FLOODED)
Battery voltage: 12V/24V auto Charge current: 20A Discharge current: 20A Max Solar input: <50V Equalization: B01 sealed 14.4V B02 Gel 14.2V B03 flood 14.6V Float charge: 13.7V(defaul,adjustable) Discharge stop: 10.7V(defaul,adjustable) Discharge reconnect: 12.6V(defaul,adjustable) USB output: 5V/2A Self-consume: <10mA Operating temperature: -35~+60 degree C System Connection:
1.Connect the battery to the charge regulator - plus and minus. 2.Connect the photovoltaic module to the regulator - plus and minus. 3. Connect the consumer to the charge regulator - plus and minus. NOTE: The reverse order applies when installing! An improper sequence
order can damage the controller! Package:
1.1X 20A Solar Charge Contorller 2.1X English User Manual
