KuRkur

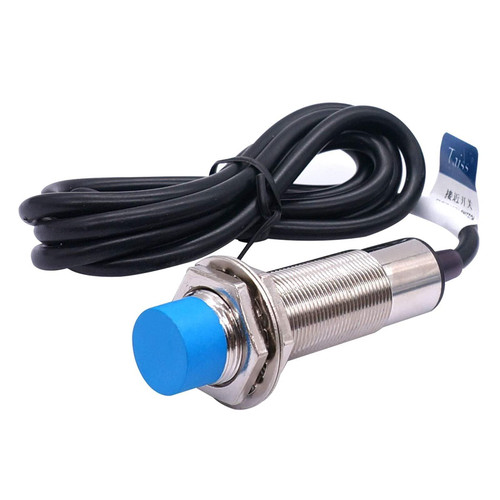

Model number:LJ18A3-8 series External dimensions:M18x60 Installation type:Shielded Detection distance:8mm Setting distance:0-7 mm Supply voltage:6-36Vdc If communication is AC90-250V Output current:DC type:300mA max;AC Type:400mA Standard detected object:Mild steel Sensing object:Magnetic metals Response frequency:500Hz Output indication:Red LED Short-circuit protection:NO Reverse connection protection:Yes Insulation resistance:50M? min Dielectric strength:1000Vac,1minIP Rating:IP65 Operating temperature:25 to 70°CCable length:1.2m,PVC cable Material:Case:Brass-nickel plated;Sensing surface:ABS
Model number:LJ18A3-8 series External dimensions:M18x60 Installation type:Shielded Detection distance:8mm Setting distance:0-7 mm Supply voltage:6-36Vdc If communication is AC90-250V Output current:DC type:300mA max;AC Type:400mA Standard detected object:Mild steel Sensing object:Magnetic metals Response frequency:500Hz Output indication:Red LED Short-circuit protection:NO Reverse connection protection:Yes Insulation resistance:50M? min Dielectric strength:1000Vac,1minIP Rating:IP65 Operating temperature:25 to 70°CCable length:1.2m,PVC cable Material:Case:Brass-nickel plated;Sensing surface:ABS
