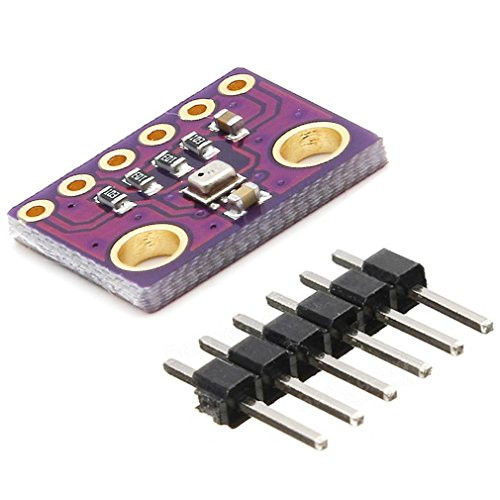

1pcs BMP280 3-3V Digital Barometric Pressure Altitude Sensor High Precision Atmospheric Module IIC I2C Board GY-BMP280

GY-BME280-3.3V high precision atmospheric pressure sensor module Altimeter   The BME280 is a breakout board with Bosch Sensortec ME280 temperature, humidity and pressure sensors. The board has an optional I2C address jumper (weld link GS2), I2C pull-up resistor, 7-pin connector 2.54mm and two mounting holes 3.5mm. Board default settings; single power line Vdd = Vdd_IO (solder link GS1), pull-up resistor (R2, R3) 10k, protocol selector resistor 0ohm (R1), decoupling capacitor 0.1uF on both supply pins Vdd and Vdd_IO . If you connect the board to two power rails, VDD_IO 1.8V and VDD 3.3V, be sure to remove the power rail jumper GS1! BME280 Features Package 2.5 mm x 2.5 mm x 0.93 mm metal cover LGA Digital interface I2C (up to 3.4 MHz) and SPI (3-wire and 4-wire, up to 10 MHz) Power supply voltage VDD mains voltage range: 1.71 V to 3.6 V VDDIO interface voltage range: 1.2 V to 3.6 V Current consumption 1.8 uA @ 1 Hz humidity and temperature 2.8 uA @ 1 Hz pressure and temperature 3.6uA @ 1 Hz humidity, pressure and temperature 0.1 uA in sleep mode Working range -40 ... + 85 C,0 ... 100%rel. Humidity, 300 ... 1100 hPa-Humidity sensor and pressure sensor can be independently enabled/disabled
