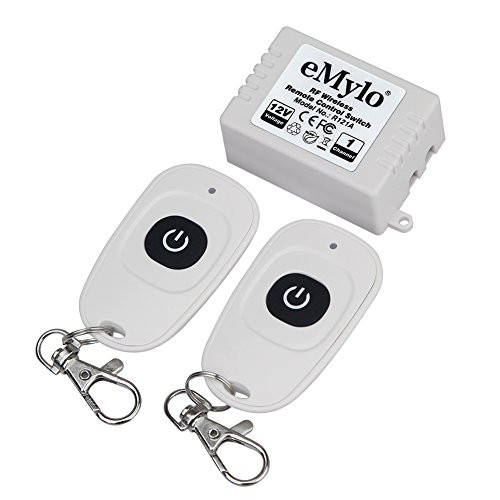

12V Remote Control Switch Secure 1Channel 433Mhz Remote Transmitter and Receiver Wireless Remote Relay RF Contact Switch Long Range Remote Control for Widely Use Latching Mode DC37v12v

Product DescriptionWorking Voltage:DC3.7V-DC12VWide Range Working Voltage DC3.7V 4.5V 5V 6V 9V 12VMax Load:1A (have better Load less than 700ma)Standby current 0.2mA Relay Working Current: 20-30maSize:0.9inch*0.43inch*0.31inchWorking Mode: Momentary/ Toggle / Delay time adjustableEncoding Type:Learning Dot to add Transmitter Normally Open Port (NO) Common Port (COM)Input DC3.7V-DC12V Output 0V Switching Value Working wayMomentary---Press the Transmitter button, the receiver relay is ON, release the button ; the receiver relay is OFFLatched---Press the button A for 1 time , the receiver relay is ON, press the button B again, the receiver relay is OFFToggle---Press the button for 1 time , the receiver relay is ON, press the button again, the receiver relay is OFFDelay time---Press the button, the corresponding relay actuates and keeps working until the time out.(5S)Learning Code:Input 12V for the Receiver,Connect the Learning point,The receiver Led indicator ON. Press remote button A 1 time, Led indicator flash for 1 times,Then Press remote button B 1 time , Led indicator flash for 1 times again, it mean learning successfullyLatched: Connect the Learning point, Until the receiver Led indicator flash for 3 times,it mean Change successfully.Toggle : Connect the Learning point . Until the receiver Led indicator flash for 1 times, it mean Change successfully. Momentary: Connect the Learning point.Until the receiver Led indicator flash for 2 times,it mean Change successfully.Delay time : Connect the Learning point . Until the receiver Led indicator flash for 4 times, it mean Change successfully.Package Include:1 x Receiver1 x Transmitter
