Features:
Incorporate a 30A fuse, and with the protection function of reverse connect power supply High Power, Digital Display Potentiometer with switch function Large 0.56 inch 3-digit LED display numbers allow viewing under the most adverse conditions The display range of 3-digit LED display is "000"-"100". (For example, displayed "055", it means that the PWM output duty cycle is 55%.)
Specifications:
Model: CCM6DS-D
Input supply voltage: 12V-80V DC
PWM frequency: 21kHz
Duty Cycle adjustable: 0%-100%
Suitable current range:current rating: 30A
Module Size(with case): 110 * 77 * 35mm
Display device: 79 * 42 * 24mm
Potentiometer cable length: 0.79inch
Package Including:
1 x Digital Display CCM6DS-D DC Motor Speed Controller With Case
Note:
-Do Not Reverse Positive And Negative Power Loads. This Will Damage The Controller. To Change Motor Direction, Interchange The Positive And Negative Wires of Motor.
-Before you attempting to wire the controller, make sure power is off.

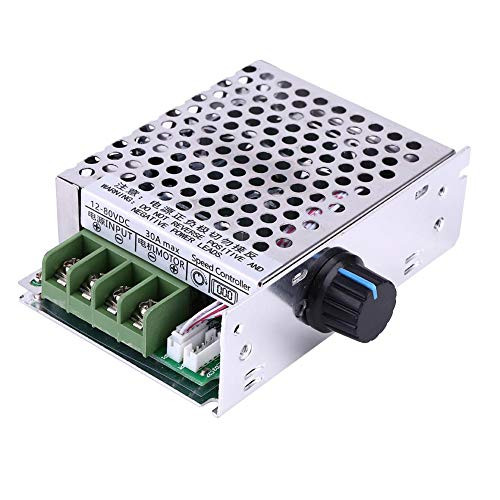

12V-80VDC 30A Motor Speed Controller?PWM Variable Digital LCD Display DC Motor Speed Controller with Case
Was:
$89.92
Now:
$44.96
- SKU:
- YTH533773
- UPC:
- 3512727524020
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
