FEATURES

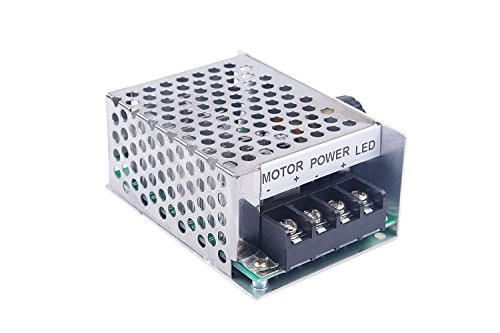

- XY-L-1240 DC Motor Speed Controller provides variable speed capability for DC motor.
- Adjustable speed range is 5%-100%.
- Output Power : 0.01-2000W(max).
- 12V:480W(max); 24V:960W(max) ; 36V:1440W(max); 50V:2000W(max)
- The use of ambient environment temperature is -20?(-4?) to 40?(104?)
- Potentiometer with switch function.
- Before you attempting to wire the controller, make sure power is off.
- WARNING: DO NOT REVERSE POSTIVE AND NEGATIVE POWER LOADS.THIS WILL DAMAGE THE CONTROLLER. TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR.
- Connect wires refer to the "wiring diagram" (NO.6 picture). (It is recommended to add an appropriately rated fuse inline with the positive supply.)
- Turn on the power. The LED lights, the power is OK.
- Adjust the potentiometer.
