10 Tall Black L Bracket Foot for Solar Panel PV Module Mounting Racking Installation

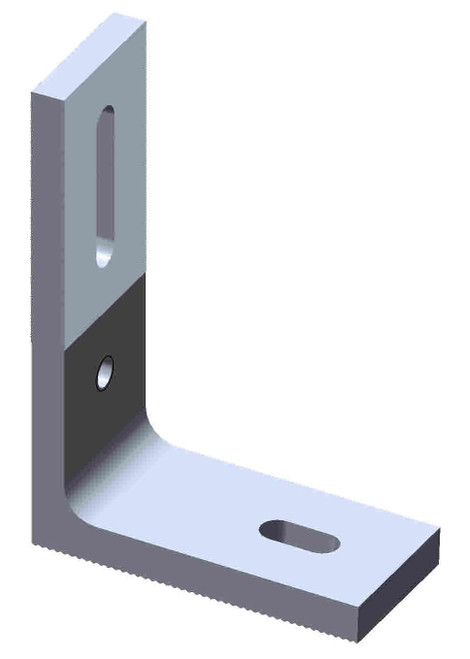

Magerack L bracket foot can be used for solar installation on sloped residential composition shingle roof with most common rails or other applications L bracket is made of anodized aluminum alloy and Extra Tall L Bracket is made of stainless steel The vertical portion has serration on both sides except Extra Tall L Bracket L and Tall L bracket's top slot through which a fastener is attached to rail is for up to 3/8" bolt. The bottom slot is for 5/16" lag screw L bracket is 3-1/2" tall, 1-1/2" wide and 3" long (deep), and made of anodized aluminum alloy Tall L bracket is 4-1/2" tall, 1-1/2" wide and 3" long (deep), and made of anodized aluminum alloy Extra tall L bracket is made of 304 stainless steel with black coating for outdoor use. The L bracket is 8" tall, 1-3/4" wide and 0.31" (8 mm) thick. The bottom is 4" long. Each order comes with 10 L brackets. The two slots are for up to 3/8" or M10 bolt.   Compatible with most common solar mounting rails
