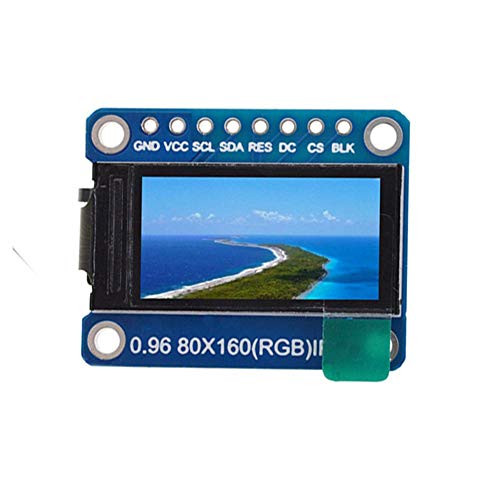

0.96 Inch 7Pin HD Color IPS Screen TFT LCD Display Module SPI ST7735 Module for Arduino

Feature: Size: 0.96 Inch Material: New IPS color screen, the color is more vivid than ordinary TFT LCD screen Resolution: 80*160 display, direction can adjust horizontal screen vertical screen Control chip: ST7735 Display area: 10.8 x 21.696mm Physical size: 24 x 30mm Interface type: SPI interface Number of pins: 7 Display color: 65K full color Working temperature: -20~70°C Working voltage: 3.3V Net weight: 5g Interface definition: 1> GND (Power ground) 2> VCC (Power +3.3) 3> SCL (SPI clock line) 4> SDA (SPI data line) 5> RES (LCD reset, LCD needs to be reset once after power-on) 6> DC (SPI data/command selection pin) 7> BLK (LCD backlight control, default can be left floating, low level to turn off the backlight) Package includes: 1 x 0.96 Inch HD Color IPS Screen Module Please note that buyers are responsible for all additional fees, brokerage fees, , and es for importation into your country. These additional fees may be collected at time of delivery. We will not refund shipping charges for refused shipments. / About service / On- Time Delivery Full refund if product isn't received in guaranteed delivery time Longer Protection 15 day more protection after order completion Returns Extra Return any product,only those in perfect condition Guaranteed Quality Guaranteed Quality or Full refund
