Spark Plug Remover Tool Compatible with Ford Triton 3 Valve 5.4L engine 2004-on.
- Compatible with Ford F150 pick up
- Compatible with Ford Expedition
- Compatible with Lincoln Navigator
- Compatible with Lincoln Mark LT

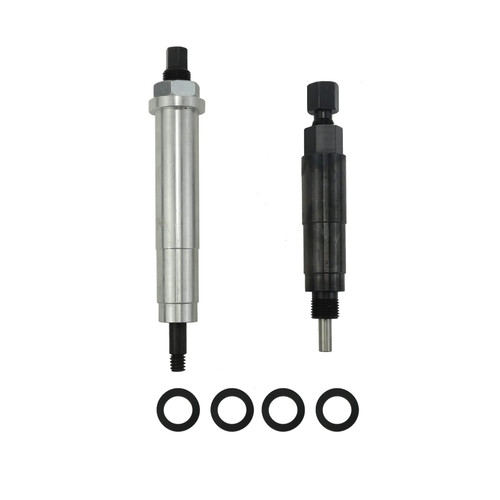

Package includes:
- A porcelain pusher for when the porcelain breaks off in the plug tip.
- A Porcelain Puller Tool that snaps onto the terminal of a broken spark plug to pull the porcelain out. Professional installation is highly recommended.
Instructions
- Use a 3/4" socket to remove the pusher assembly.
- The push screw hex should touch the body hex.
- Blow out all the porcelain pieces and insert the puller housing.
- Insert the pull screw and turn counterclockwise until tight. Use a 7/16" socket.
- Place the nylon washer and left hand nut on the pull screw. against the puller housing. Use a 15/16 inch socket.
- Turn the nut counterclockwise to pull the damaged spark plug tip out of the hole. Use a 15/16 inch socket. Blow out all the china before inserting new spark plugs.
- When all the porcelain comes out with the stopper and only the tip is left in the hole, the push rod assembly step can be skipped.
Note: Instructions not included, it is recommended to be operated by professionals
