Feature:
1. Built-in decoding module
2. Built-in amplifier module
3. Support wireless Bluetooth control
4. Support fan
5. Stereo double-channel output
6. Adjustable volume
7. High power output
8. Transparent acrylic shell
Parameter:
Supply voltage: DC 12V-32V
Output power:100W*2
Output channel:2CH
Control IC:TPA7498
Output impedance:4~8ohm
Class: Class D
Audio output: Stereo
Operating Temperature:-40?~85?
Operating Humidity:5%~95%RH
Module Size(installed):108*78*47mm
Button description:
1. Button -: It is used to select previous music or decrease volume. Short press to select play previous music. Long press to decrease volume.
2. Button +: It is used to select the next music or increase volume. Short press to select play next music. Long press to increase volume.
3. Button RST: It is used to play or pause music.
Use Steps:
1. Connect work power supply and speaker as shown wiring diagram.
2. Turn on Bluetooth on the phone.
3. Find Bluetooth device XH-Electronics and select connect.
4. The blue LED indicator will turn ON if the connection is successful.
5. Play music and enjoy it!
Note:
1. Please use a matching speaker to ensure that the voice is played properly.
2. Do not reverse the input wire, otherwise it will damage the module or the speaker.
Application:
1.DIY speaker
2.Repair replacement
3.Public broadcasting
4.Electronic enthusiast
5.Bluetooth device
6.Bluetooth Speaker
Package:

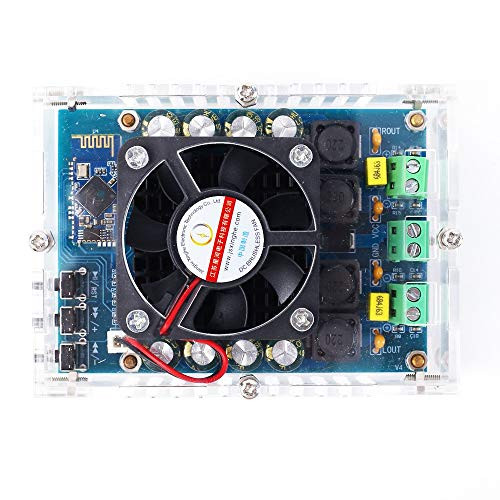

1pcs XH-A103 High-Power Bluetooth Digital Power Amplifier Board
YEMIUGO Bluetooth Amplifier Module Audio Stereo 100W Dual Channels Digital Amplifier Board DC 12V 24V Wireless Bluetooth Receiver with Fans
Was:
$75.88
Now:
$37.94
- SKU:
- M167782
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
