Specifications:
SSID: WiFi_OBDII
IP: 192.168.0.10
Port: 35000
Master Chip: ST
Working Voltage: 12V
Working Current: 65mA
Standby Current: 45mA
Operating temperature: -40 ? ~ 85 ?
Working Humidity: less than 60%
Support System: IOS, Android, Symbian, Windows XP/7/8
Functions:
1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL ("Check Engine" light)
3: Display current sensor data, including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages / associated short term fuel trims
- Fuel System status
- Fuel Pressure
- Many others
Compatible software:
Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
IOS: Auto Doctor, Mini OBDII
Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
Symbian: OBDScope
Supported protocols:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4 Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
Package Include:
1 x Mini OBD2 Wifi Scanner
1 x CD

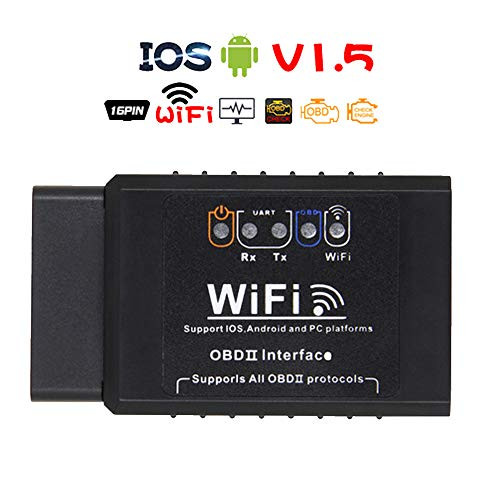

XTAUTO WiFi OBD2 Scanner Wireless Car Code Reader Check Engine Light Diagnostic Tool for iOS iPhone Android
Was:
$49.88
Now:
$24.94
- SKU:
- M333467
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
