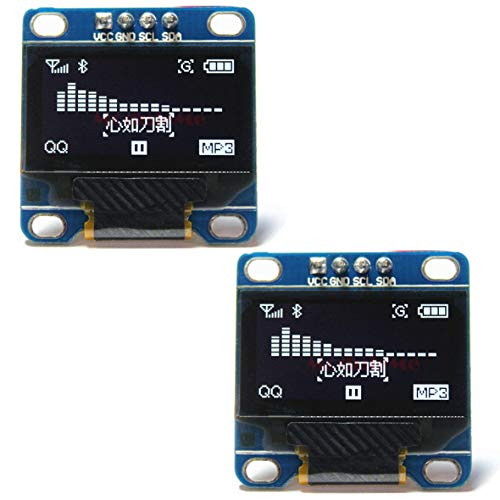

128*64 LED display module for Arduino, supports many control chip.
Fully compatible with for Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Super high brightness and contrast are adjustable
With embedded driver/controller
Interface type is IIC
Pin Definition: GND, VCC ,SCL, SDA
Pins: 4 pins
Voltage: 3V ~ 5V DC
Working Temperature: -30 ? ~ 70 ?
Character Colors: White
Drive Duty: 1/64 Duty
High resolution: 128 * 64
Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)
Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)
Driver IC: SSD1306
Package Included:
1PC*128x64 white OLED display module for Arduino
XM electronic 4pin 0.96" White 0.96 inch OLED 128X64 OLED Display Module 0.96" IIC I2C Communicate for Arduino Raspberry Pi
