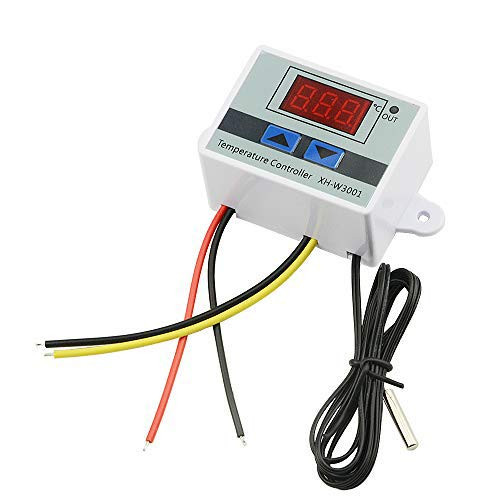

XLX XH W3001 DC 110V 220V 1500W 10A Microcomputer Digital Temperature Controller Digital Display Thermostat Control Switch and NTC 10K Thermistor Sensors Digital Temperature Probe

About us: The W3001 temperature controller adopts single-chip microcomputer control system and high-precision temperature control probe, with outstanding temperature control performance and precision. Simple control panel, wide temperature range, independent judgment of heating and cooling mode, simple setting. Specification: Name: Microcomputer Temperature Controller Model: XH-W3001 Temperature Measurement Range: -50 to 110 degree centigrade Temperature Control Range: -50 to 110 degree centigrade Measurement Accuracy: +/- 0.2 degree centigrade Control Accuracy: +/- 0.1 degree centigrade Measuring input: NTC 10K L = 1M waterproof probe Input Power: DC 12V/110V-220V Output Power: 120W/1500W (MAX) Output Type: Direct output (input/output synchronization) Output Current: 10A (MAX) Installation Pitch: 73mm (aperture 4mm) Size: 60mmx45mmx31mm Weight: 26g Wiring method: W3001 of 12V/110V can be powered by a transformer or a dc power output of 12V/110V. W3001 is a direct output, so in the case that the output end is not well connected with the load, do not power on, to prevent the current from contacting and striking. Press the setting buton, enter the internal menu. Press the up and down to switch setting parameter. P0: Set Start temperature. Press the up button once to display the starting temperature. Press the up button for about 3 seconds, and the starting temperature number flashes. You can set the required temperature through the up and down keys P1: set stop temperature. Press the down button once to display the stop temperature. Press the down button for about 3 seconds and the stop temperature number will flash. P2: Set temperature calibration. Detect temperature + corrected temperature = actual temperature
