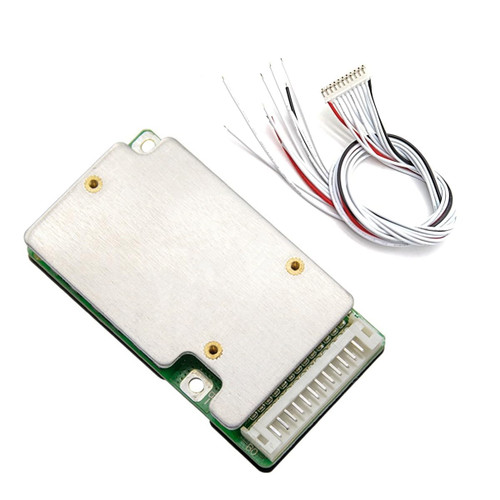

XIBANY Motorized Scooter 8S 24V 50A Lron-Lithium Battery Protection Board for Electric Vehicles Scooters BMS with Equalization Motorized Scooter

Discharge current: 50A
Main circuit conduction internal resistance: 6mQ
Product model: CF-60V20A-A
Charging current (same port): less than or equal to 30A
Charging voltage: iron-lithium battery 29.2V
Charging current (split port): NA
Product name: 8 strings Lithium iron 24V
Overcharge protection:
Detection voltage: 3.65 +/- 0.025v
Detection delay: 1000 +/- 500MS
Release voltage: 3.45 +/- 0.05V
Over-discharge voltage protection:
Detection voltage: 2.35 +/- 0.1v
Detection delay: 1000 +/- 500MS
Release voltage: 2.7 +/- 0.1v
Balanced voltage:
Detection voltage: 3.45 +/- 0.025V
Detection delay: 100 +/- 50MS
Balance current: 35 +/- 5MA
Discharge overcurrent protection:
Detection voltage: 100MV
Detection delay: 1000 +/- 500MS
Current protection: 100 +/- 20A
Short circuit protection:
Trigger condition: short circuit of external load
Detection delay: less than or equal to 350US
Release condition: Disconnect load and charge activation
Self-consumption:
Working power consumption: less than or equal to 40UA
Sleep over-discharge power consumption: less than or equal to 10UA
Operating temperature range: -30/+80°C
Colour: Silver
Material: PCB+metal
Size: 80 x 53 x 10mm
Package Contents:
1 x Lithium Battery Protection Board
