Specification:
Working voltage: DC 12V
Output capability: can control devices within 30V10A DC or within 220V10A AC
Quiescent current: 15mA
Working current: 30mA
Service life: 100,000 times
Working temperature: -40 ~ 85'C
Size: 65 * 28 * 18mm/2.68 * 1.1 * 0.71inch
Operation Mode:
Time delay range: T1 and T2 between 0.1 second ~99 hours adjustable.
P1(relay on):when power on, the relay on, delay T1, and the relay off. Give IN a low level, repeat
the above function.
P2(relay off):when power on, the relay disconnected, delay T1, and the relay on. Give IN a low
level, repeat the above function.
P3(Timing cycle on-off): when power on, the relay on, delay T1, and the relay off, delay T2, the
relay on, and then repeat the above condition, cycle times can be adjusted 1-99 times or infinite loop.
P4(Timing cycle off-on): when power on, the relay disconnected, delay T1, and the relay on, delay
T2, the relay off, and then repeat the above condition, cycle times can be adjusted 1-99 times or infinite loop.
P5(trigger relay on): when power on, the relay disconnected, triggered the relay on, delay T1, and
the relay off. Give IN a low level, repeat the above function.
P6(trigger relay on):when power on, the relay disconnected, triggered the relay disconnected,
delay T1, and the relay on. Give IN a low level, repeat the above function.
P7(trigger cycle on-off): when power on, the relay disconnected, triggered the relay on, delay T1,
and the relay off, delay T2, and the relay on, and then repeat the above condition, cycle times can
be adjusted 1-99 times or infinite loop.
P8(trigger circle off-on): when power on, the relay disconnected, triggered the relaydisconnected
delay T1, and the relay on, delay T2, and the relay off, and then repeat the above condition, cycle
times can be adjusted 1-99 times or infinite loop.
Package Content:
1* relay module

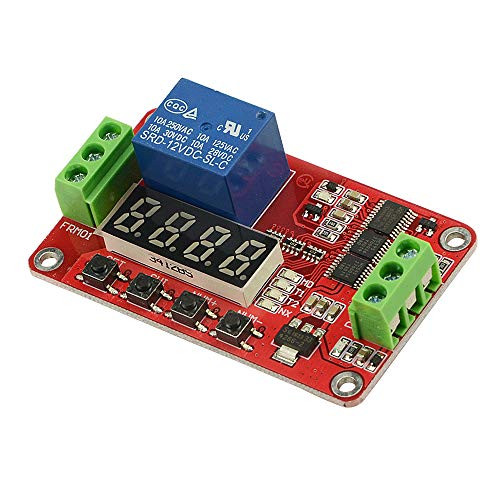

WMYCONGCONG DC 12V Time Delay Relay Module Trigger Time Delay Switching Relay Modue ON/OFF Cycle Timer Digital LED Display
Was:
$47.88
Now:
$23.94
- SKU:
- ZB591830
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
