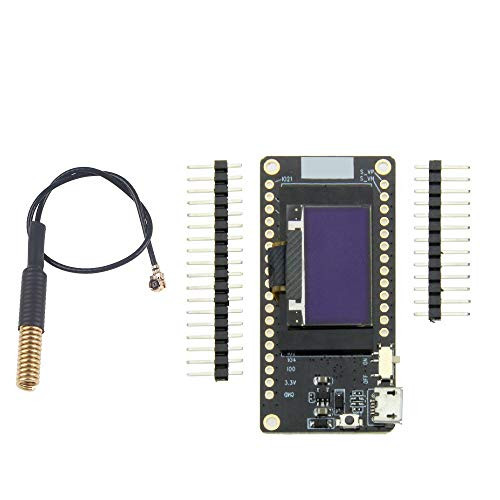

WINGONEER LORA32 V2.0 868MHz ESP32 LoRa OLED 0.96 inch Display screen SD Card Blue Bluetooth WIFI Module with Antenna
Description:
Working voltage: 1.8~3.7v
Ceptable current?10~14mA
Transmit current: 120mA@+20dBm, 90mA@+17dBm,29mA@+13dBm
Operating frequency: 868MHz
ransmit power: +20dBm
Receive sensitivity :-139dBm@LoRa &62.5Khz&SF=12&146bps,-136dBm@LoRa &125Khz&SF=12&293bps,-118dBm@LoRa &125Khz&SF=6&9380bps,-123dBm@FSK&5Khz&1.2Kbps
Frequency error?+/-15KHz
FIFO space ? 64Byte
Data rate ?1.2K~300Kbps@FSK,0.018K~37.5Kbps@LoRa
Modulation Mode ?FSK,GFSK,MSK,GMSK,LoRa TM?OOK
Interface form ? SPI
Sleep current ?0.2uA@SLEEP,1.5uA@IDLE
Operating temperature ?-40?- +85?
Digital RSSI function
Automatic frequency correction
Automatic gain control
RF wake-up function
Fast wake-up and frequency hopping
Highly configurable data packet handler
Package include:
1 X lora32 V2.0 433MHz module
1 X antenna
1 X power cord
