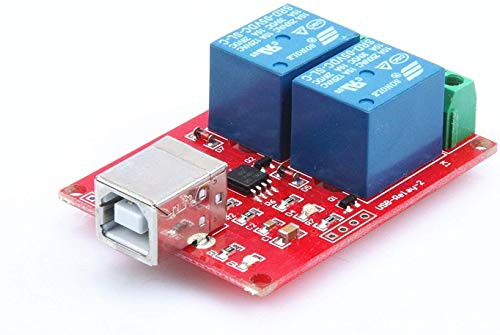

WINGONEER DC 5V 2-Channel Relay Module Free Driver USB Control Switch PC Intelligent Control
Description:
The module uses HID technology, without any drivers, plug and play. Support WIN7/XP 32/64-bit systems, easy to use and simple.
Onboard square USB interface connection stable.
High-performance USB controller chip, military grade PCB board production.
5V relay, the relay can control the maximum 250V 10A AC load and 30V 10A DC load.
Control terminals Connection: NC / COM / NO.
Voltage: DC 5V Load: 250V 10A AC / DC 30V 10A Max .
Fixing hole size: 3mm.
Mounting holes center distance: 52.2mm * 36.6mm.
Support System: WIN7 / XP 32/64 bit systems.
Size:56.5*41*20mm.
Weight:32g/1.12oz.
The module uses HID technology, without any drivers, plug and play.
Support WIN7/XP 32/64-bit systems, easy to use and simple.
Onboard square USB interface connection stable.
5V relay, the relay can control the maximum 250V 10A AC load and 30V 10A DC load.
Application:
Robotics control
Home automation
Control doors and windows via windows system
Controller power supply
Package included:
1 x 2 channels USB relay
