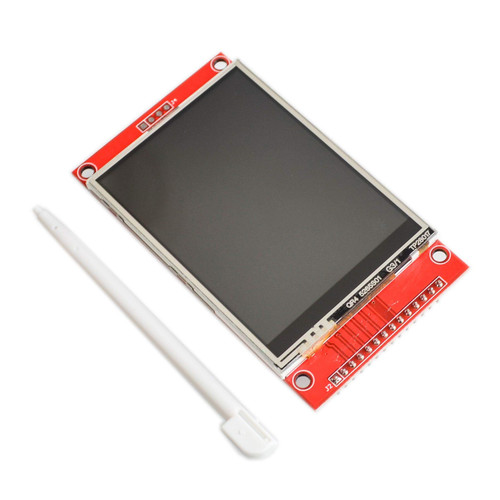

WINGONEER 2.8 inch LCD TFT LCD SPI serial touch TFT color screen
Features:
Pin definition:
1. GND (power ground)
2. VCC (power supply is 3.3V)
3. CLK (clock line)
4. MOSI (data input)
5. RES (reset line)
6. DC (data / command selection line)
7. BLK (backlight)
8. MISO (data output)
9. CS1 (LCD chip select signal)
10. CS2 (touch chip chip selection signal)
11. PEN (touch interrupt signal)
Package include:
1 x screen
