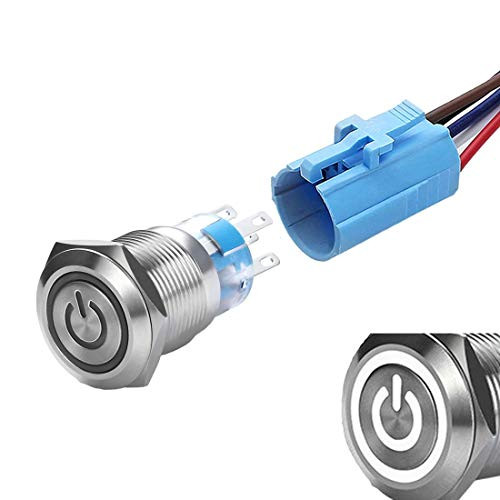

WerFamily Power Symbol 12V Green LED 19mm Latching Push Button Switch 1NO 1NC SPDT ONOFF Waterproof Stainless Steel Metal Round with Wire Socket Plug

Introduction: It is a perfect choice if you are in need of a heavy duty push button! This switch is a very tough, small, panel-mount Latching switch with an illuminated LED. It can be used for basic On/Off functions perfectly. The switch is rated up to 5A and 250VAC while the LED is rated for 5-12V. It comes with the wire connector, you don't need to solder the terminals, make fitting very easy. Widely Use Widely used in various additional electric equipment, relay, inside & outside the car or any circuit controls -- any application you can think of! The switch is IP67 rated, it is also an anti dust and waterproof one which makes it great for outdoor use. Specification: - Tail configuration: Connection terminal(2.8 X 0.5) - Switch Rating: 5A/250VAC - Contact resistance: ?50m? - Insulation resistance: ?1000m? - Dielectric intensity: 2000VAC - Operation Temperature: -20? ~ +55? - Mechanical life: 500,000 cycles - Electrical life: 50,000 cycles - Panel thickness: 1 - 10mm - Operation pressure: About 3 - 5N - Operation stroke: About 2.5mm - Protection level: IP67, IK10 - Mounting Cut Hole: 19mm - Head Diameter: 22mm - Operation Type: Latching - Switch Contact: 1NO 1NC - LED Rating: 15mA, AC/DC 12V - LED Pattern: Power Indicator + Ring - LED Color: Green - Contact Material: Silver alloy - Button Material: Stainless Steel - Socket Plug Length: 15cm/5.9" Packing Include: 1 x push button switch 1 x wire socket plug Note: - The switch come with a rubber O-ring which makes it splash resistant but it can NOT be submerged underwater. - Don't let current go above 5A, or the switch will get warm and to be burned out.
