Introduction:

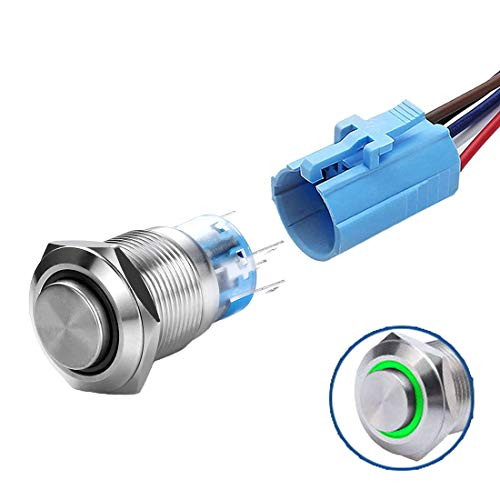

It is a perfect choice if you are in need of a heavy duty push button! This switch is a very tough, small, panel-mount Momentary switch with an illuminated LED. It can be used for basic On/Off functions perfectly. The switch is rated up to 5A and 250VAC while the LED is rated for 5-12V. It comes with the wire connector, you don't need to solder the terminals, make fitting very easy.
Widely Use
Widely used in various additional electric equipment, relay, inside & outside the car or any circuit controls -- any application you can think of! The switch is IP67 rated, it is also an anti dust and waterproof one which makes it great for outdoor use.
Specification:
- Tail configuration: Connection terminal(2.8 X 0.5)
- Switch Rating: 5A/250VAC
- Contact resistance: ?50m?
- Insulation resistance: ?1000m?
- Dielectric intensity: 2000VAC
- Operation Temperature: -20? ~ +55?
- Mechanical life: 500,000 cycles
- Electrical life: 50,000 cycles
- Panel thickness: 1 - 10mm
- Operation pressure: About 3 - 5N
- Operation stroke: About 2.5mm
- Protection level: IP67, IK10
- Mounting Cut Hole: 19mm
- Head Diameter: 22mm
- Operation Type: Momentary
- Switch Contact: 1NO 1NC
- LED Rating: 15mA, AC/DC 12V
- LED Pattern: Ring
- LED Color: Blue
- Contact Material: Silver alloy
- Button Material: Stainless Steel
- Socket Plug Length: 15cm/5.9"
Packing Include:
1 x push button switch
1 x wire socket plug
Note:
- The switch come with a rubber O-ring which makes it splash resistant but it can NOT be submerged underwater.
- Don't let current go above 5A, or the switch will get warm and to be burned out.
