100% Brand New and High Quality.
Specification:
Tail configuration: Wiring terminal
Switch Rating: 5A/250VAC
Contact resistance: ?50m?
Insulation resistance: ?1000m?
Dielectric intensity: 2000VAC
Operation Temperature: -20? ~ +55?
Mechanical life: 500,000 cycles
Electrical life: 50,000 cycles
Panel thickness: 1 - 10mm
Nut torque: 5 - 14Nm
Operation pressure: About 4N
Operation stroke: About 1.5mm
Protection level: IP67, IK08
Mounting Cut Hole: 19mm
Head Diameter: 22mm
Operation Type:
Momentary (Resettable)
Switch Contact: 1NO (Normally Open)
Head Shape:
High Flush
Terminal Type: Screw
Body Material: Stainless Steel
Button Material: Stainless Steel
Base: PA66
Color:
Brown
Quantity:
1 pcs
Introduction:
Momentary switch
Momentary switches only remain in their on state as long as they're being pressed.
This switch can be used for everything- window switches, engine start, headlights, fog lights, flame thrower kits, smoke screen kits- any application you can think of! The switch is IP67 rated, it is also an anti dust and waterproof one which makes it great for outdoors use.

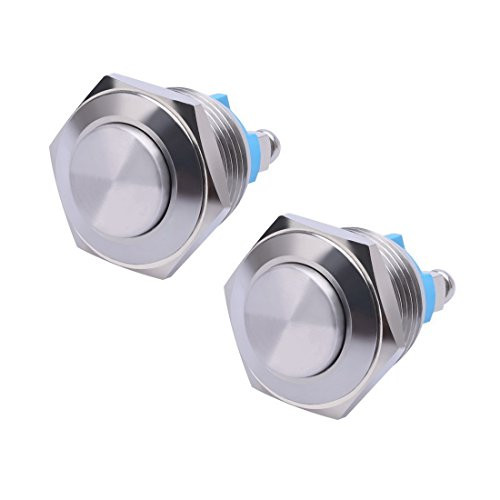

WerFamily 19mm Brown Waterproof Momentary Type Stainless Steel Metal Push Button Switch High Flush 250V 5A 1NO SPST
Was:
$69.80
Now:
$34.90
- SKU:
- YTH69200
- UPC:
- 710185900902
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
