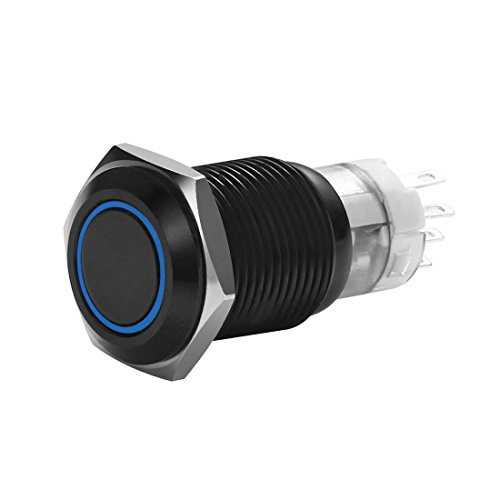

WerFamily 16mm Momentary Push Button Switch 1NO 1NC SPDT ON Off Waterproof Round Black Shell Aluminum Alloy with Blue LED Angel Eye Power Indicator

Introduction: 100% Brand New and High Quality. It is a perfect choice if you are in need of a heavy duty push button! This switch is a very tough, small, panel-mount Momentary switch with an illuminated LED. It can be used for basic On/Off functions perfectly. The switch is rated up to 3A and 250VAC while the LED is rated for 3-12V. Momentary switch Momentary switches only remain in their on state as long as they're being pressed. Widely Use Widely used in various additional electric equipment, relay, inside & outside the car(Such as critical lights, foglight, dome light) or any circuit controls -- any application you can think of! Specification: - Tail configuration: Connection terminal(1.8 X 0.4) - Switch Rating: 3A/250VAC - Contact resistance: ?50m? - Insulation resistance: ?1000m? - Dielectric intensity: 2000VAC - Operation Temperature: -20? ~ +55? - Mechanical life: 500,000 cycles - Electrical life: 50,000 cycles - Panel thickness: 1 - 15mm - Nut torque: 5 - 14Nm - Operation pressure: About 3 - 5N - Operation stroke: About 2.8mm - Protection level: IP67, IK10 - Mounting Cut Hole: 16mm - Head Diameter: 18mm - Operation Type: Momentary - Switch Contact: 1NO 1NC - Head Shape: Flat - LED Rating: 15mA, AC/DC 12V - LED Pattern: Power Indicator + Ring - LED Color: Blue - Contact Material: Silver alloy - Button Material: Aluminum Alloy Packing Include: 1 x push button switch Note: - The switch come with a rubber O-ring which makes it splash resistant but it can NOT be submerged underwater. - Don't let current go above 3A, or the switch will get warm and to be burned out.
