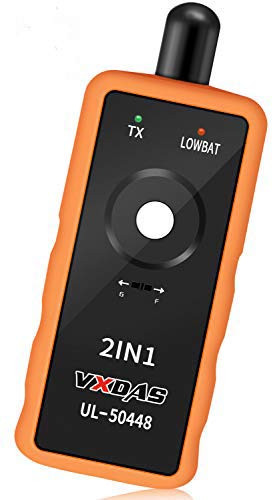

VXDAS UL50448 TPMS Reset Tool is new design for GM & Ford vehicles' tire pressure monitors reset.
Before using the tool to reset the TPMS, your car need to get into the Learning Model.
How to set GM cars to learning model:
1. Put on handbrake and make the gear in P position.
2. Use cruise to choose TPMS re-learn mode in the dashboard settings.
3. Horn will ring twice and the TPMS indicator flashes, then the learning mode has been successfully entered. (If equipped, the message center will display the front left (LF) tire)
How to set Ford cars to learning model:
1. Make the gear in P position.
2. Ignition switch to OFF, press and release the brake pedal.
3. Turn ignition switch from OFF position to RUN position 3 times and end at RUN position.
4. Depress and release the brake pedal.
5. Ignition to OFF position.
6. Ignition goes from OFF position to RUN position 3 times and ends at RUN position.
7.Horn will ring once and TPMS indicator flashes, then learning mode has been entered successfully. If equipped, the message center will display the front left (LF) tire.
And here are the steps how to use our TPMS Reactive Tool after set the car to learning model? (9V battery are required)
1. Starting relearn process from left front tire, point antenna on correct position. Press & release power button. Once the speaker chirped, move to the next tire.
2. Follow this order to rest TPMS sensors: Front left, front right, rear right, rear left.
3. After all sensors reseted, the car horns twice means TPMS re-learn finished.
If you want to reset your GM and Ford cars one by one, please switch to middle and wait for a while, when the tool has turn off automatically, you can reset another car.
