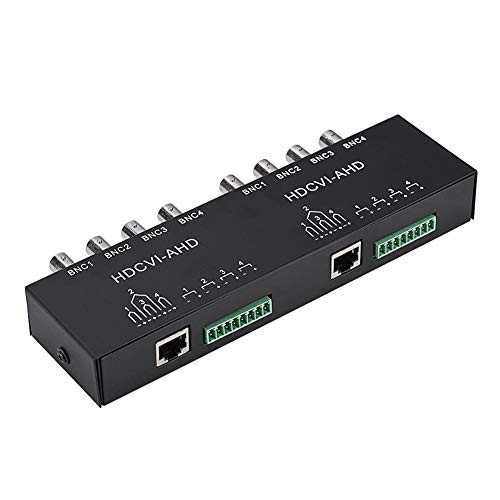

Vbestlife BNC to RJ45 CAT5/6 UTP Passive Video Transceiver Balun for AHD/HDCVI/HDTVI CCTV Camera 4 Ports

Description: The passive UTP video baluns convert the video signal into the balanced signal which is applicable to be transmitted on common CAT5 unshielded twisted pair wire. It can be applied in the occasions such as video monitoring and video meeting and can transmit 4/8 video channels simultaneously on an 8-Core CAT5 twisted pair wire. It can simplify the wiring project and save excess wire use. Specifications: Channel: 4-CH, 8-CH (Optional) Frequency response: DC-8MHZ Common mode rejection ratio: 60DB Impedance: BNC connector: 75?; RJ45 connector: 100? Working temperature: -10C-70C Storage temperature: -30C-70C Signal format: Suitable for NTSC, PAL, SECAM, CCIR systems Characteristic impedance: 100?20? DC loop resistance: 18?/100 meters Differential capacitance: 62pf/m (max.) Color: Black Dimensions for 4-CH: 128 * 72 * 27mm / 5.1 * 2.9 * 1.1inch Material: Metal Package weight: 237-362g Type of cable: Unshielded CAT5 or above twisted pair wire (Please use standard CAT5 or above twisted pair wire. The wire quality will directly affect the transmitted image and transmission distances.) Package List: 1 x Passive HD Video UTP Transceiver 1 x User Manual
