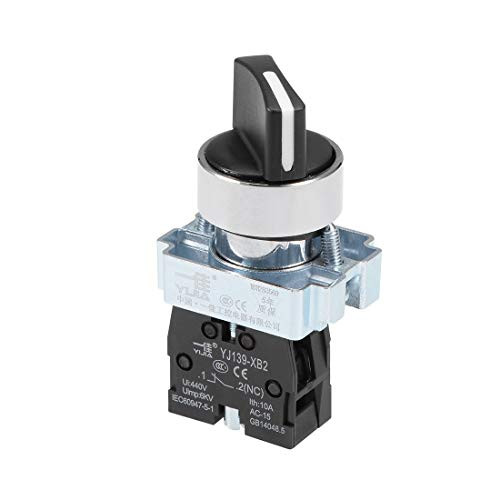

uxcell Rotary Selector Switch 2 Positions 1NC Self-Lock Latching AC 380V 10A 22mm Panel Mount

Description: -Selector switches use cams in combination with contact blocks to provide a wide range of circuit openings and closings. -Selector switches are often used when more than one control option is needed (e.g. Hand-Off-Auto). -This 22mm selector switch is modularly designed to make assembly. -Used widely to control the electromagnetic starter, Contactor, relay and other automatic control electric circuits. Specification: Rated Voltage: AC 380V Rated Current: 10A Insulation Voltage (Ui): 440V Heating Current (Ith): 10A Action Type: Latching (Self-Locking) Positions: 2 Contacts Type: 1 Normally Closed Terminals Type: Screw Clamps Terminals Panel Mounting Diameter: 22mm / 7/8" Overall Size: 68 x 40 x 30mm / 2.68" x 1.57" x 1.18" (L*W*H)
