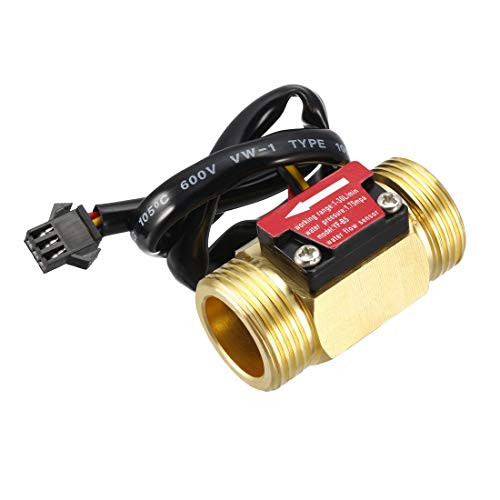

uxcell G12 Hall Effect Liquid Water Flow Sensor Switch Flowmeter Meter Counter DC 5V 1-30Lmin YF-B8

1.Water Flow Switch adopts a Magnetic Reed Switch, G1/2 threaded ports. Equipped with filter water entry. 2.Mainly used for water heater, boiler, water dispensers, coffee machines, hot card machines, steam equipment, water system, the campus card sales, selling self-help water systems, water treatment equipment, cooling systems, mechanical equipment, instrumentation. 3. Wire connection: Red for positive, black for negative, yellow for pulse signal. Specifications: Product Name: Water Flow Sensor Material: Brass(Shell) Size: 67mm x 27mm x 30mm / 2.64" x 1.06" x 1.18"(L*W*H) Cable Length: 290mm / 11.42" Liquid Temperature: Not More Than 60C Rated Voltage: DC 5V Max Current: 10mA(DC 5V) Maximum water pressure: 1.75MPa Flow range: 1-30L/min Connector: Male SM-3P Inlet Thread Diameter: G1/2 Female Outlet Thread Diameter: G1/2 Male Ingress Protection Rating: IP65 Color: Brass Tone Net Weight: 93g Package Included: 1 x Water Flow Sensor Note: 1. Installed in accordance with flow direction in the product, otherwise there is no signal output. 2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.
