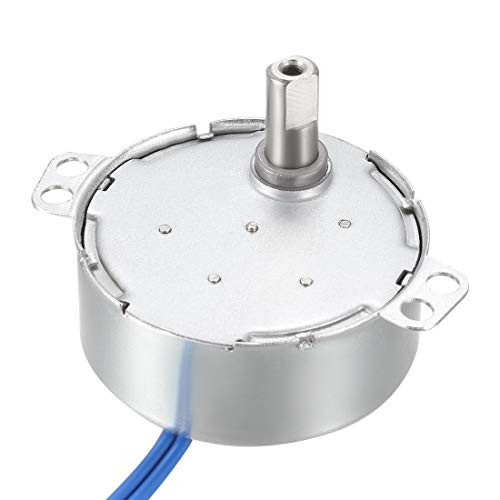

uxcell Electric Synchronous Synchron Motor Turntable Motor 100 127 VAC 50 60Hz CCW CW 4W 45 54RPM

Description It is mainly used for gluing machine,monitor, electrical curtain, stage lights, advertisement electrical movement, electrical apparatus and science and education instruments. Information About Synchronous Motors Advantage of using synchronous motor is the ability to control the power factor. An over excited synchronous motor can have leading power factor and can be operated in parallel to induction motors and other lagging power factor loads thereby improving the system power factor. A synchronous motor is one in which the rotor normally rotates at the same speed as the revolving field. Specification Rated Voltage: AC 100-127V Power: 4W Manner of Working: CCW/CW Rated Frequency: 50-60Hz Rated Speed: 45-54RPM Torque: 0.5kgf.cm Body Diameter: 50mm/ 1.96 inch Body Height: 20mm/ 0.78 inch Total Length: 65mm/ 2.55 inch Mounting Hole Diameter: 4.5mm/ 0.17 inch Shaft Diameter: 7mm/ 0.28 inch Shaft Length: 14mm/ 0.55 inch Shaft Hole Diameter: 3mm/0.11 inch Internal Thread Size: M4 Wire Length: 40cm/ 15.7 inch Package: 1 x Electric Synchronous Motor
