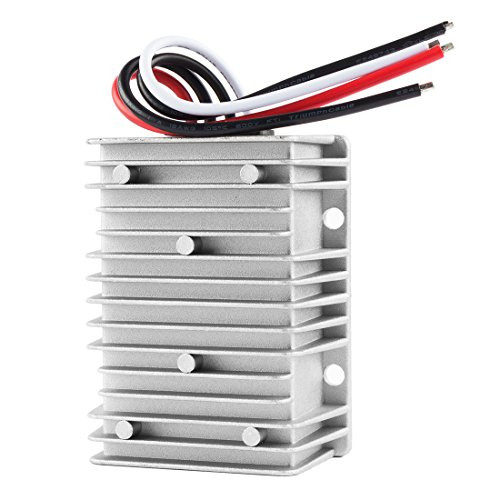

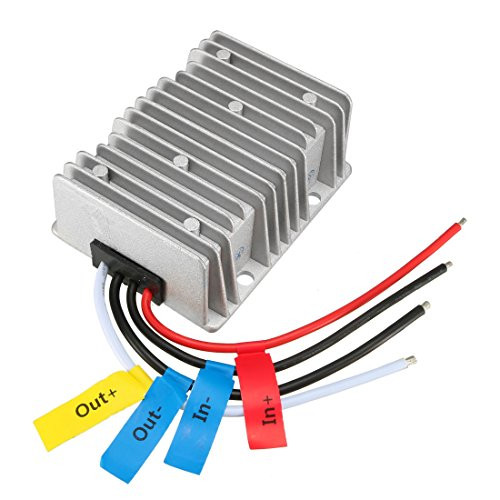

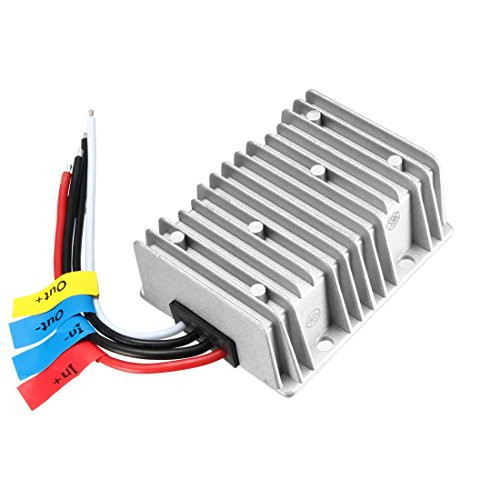

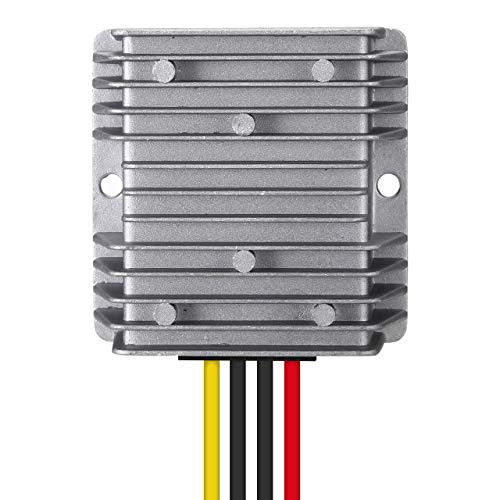

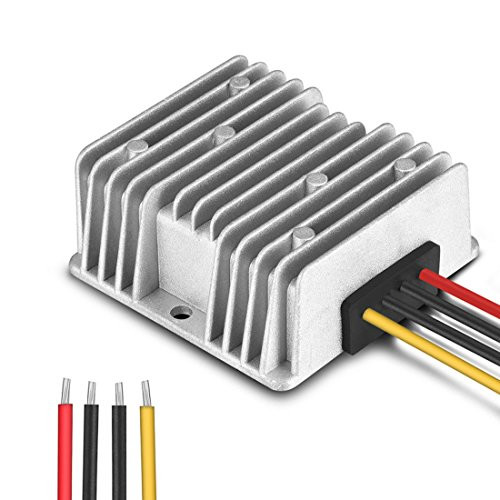

uxcell BIG-Size Voltage Buck Converter Regulator DC 24V to DC 12V 30A 360W Waterproof Power Transformer

Features: 1. 100% full power and stable current output, non-isolated module. 2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight. 3. Industry grade DC24V to DC 12V step-down converter, efficiency up to 96.5%. 4. Die-cast aluminum shell, epoxy potting, cooling by free air convection. 5. Certificates: CE/RoHS, 1 year , lifetime up to 100,000 hours. 6. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating. Applications: - Trucks - Golf Carts - Forklifts - Buses - Loaders - Logging Vehicles - Wind Power System - Solar Power System - Electromotor - Telecommunications - Boat and Yacht - and so on.. Specifications: * Input Rated Voltage: DC 24V * Input Voltage Range: 19-35V DC * Output voltage: DC12V 30A * Output Rated Power: 360W * Efficiency: 96.5% (half load); 95.4% (full load) * Output Peak Power: 450W * Voltage Regulation: Less Than 1% * Load Regulation: Less Than 2% * Ripple(full load test): Less Than 150mV * No Load Current: Less Than 25mV * Total Size: 100*80*39mm(L*W*H) * Fixing Hole Diameter: 6mm(0.23 inch) * Weight: 501g Package included: 1 x DC 24V to DC12V 30A Voltage Converter Regulator Safety Instructional Manual: 1. Can not used long time Under the MAX. LISTED LOAD POWER. 2. Please connect the converter and your device as the wiring diagram provided on above picture.
