Features:
Excellent accessibility, stable performance, practical and convenient
This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and plant.
Also can be used in circuits, control circuit and auxiliary circuit for terminal limit protection.
Specification

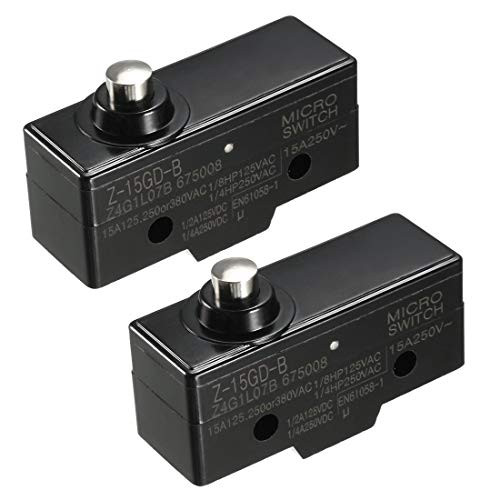

Product Name: Micro Switch;
Model No.: Z-15GD-B;
Contact Type: 1NO, 1NC
Termination Style: Screw Terminal;
Terminal Number: 3
Rating: 15A 125.250or380VAV; 1/8HP125VAC 1/4HP250VAC; 1/2A125VDC 1/4A250VDC
Protection degree: IP62
Overall Size: 50x35x18mm/1.97x1.38x0.71inch(L*W*H)
Net Weight : 148g;
Package Content
5 x Microswitch
