Premium stainless steel 304 material, rustproof durable to use.
Adjustable latch ,locking force is adjustable.

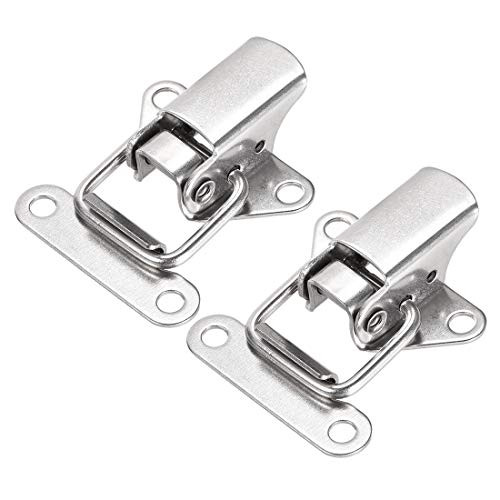

Concealed toggle latch, better visual effects, compact structure.
Spring leaf inside to reduce vibration, spring can self-acting return.
Widely used for small case cover, toolbox, Cleaner.
Easy to install by screws, and please note that screws are not included here.
Specification:
Material: SUS304 Stainless Steel
Finish: Polish
Main Body Size: 99.5mm x 44mm / 3.92" x 1.73" (L*W)
Hook Size: 33mm x 28.5mm x 1.5mm / 1.30" x 1.12" x 0.059" (L*W*T)
Body Mounting Hole Diameter: 4mm / 0.16"
Hook Mouting Hole Diameter: 4.5mm / 0.177"
Locking Load:1000N
Ultimate Load:3500N
Package Content:
1 x Concealed Toggle Latch
Adjustable latch ,locking force is adjustable.
Concealed toggle latch, better visual effects, compact structure.
Spring leaf inside to reduce vibration, spring can self-acting return.
Widely used for small case cover, toolbox, Cleaner.
Easy to install by screws, and please note that screws are not included here.
Specification:
Material: SUS304 Stainless Steel
Finish: Polish
Main Body Size: 99.5mm x 44mm / 3.92" x 1.73" (L*W)
Hook Size: 33mm x 28.5mm x 1.5mm / 1.30" x 1.12" x 0.059" (L*W*T)
Body Mounting Hole Diameter: 4mm / 0.16"
Hook Mouting Hole Diameter: 4.5mm / 0.177"
Locking Load:1000N
Ultimate Load:3500N
Package Content:
1 x Concealed Toggle Latch
